7.3.9 View Step dialog box

Use the View Step dialog box to view information about a step of a service template. Do one of the following to display the View Step dialog box:

• In the service template view dialog box, click the View Step button in the Steps view.
• In the service template view dialog box, right-click a step icon displayed in the Flow view, and then select View.
• In the service template view dialog box, double-click a step icon displayed in the Flow view.

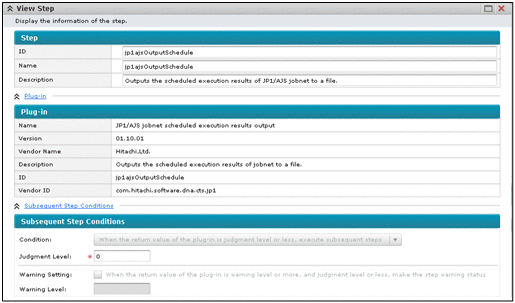

Figure 7-28 View Step dialog box (1/2)

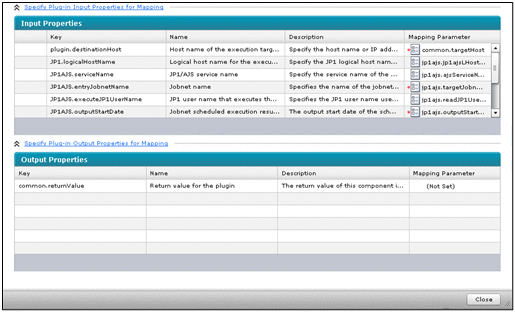

Figure 7-29 View Step dialog box (2/2)

This dialog box displays the following items:

Tip:

The View Step dialog box is read only. You cannot change the settings here.

Step

Shows the definition information of the step.

ID text box

Shows the ID of the step.

Name text box

Shows the name of the step.

Description text box

Shows a brief description of the step.

Plug-in

Click this to display the definition information of the plug-in.

Plug-in

Shows the definition information of the plug-in.

Name

Shows the name of the plug-in.

Version

Shows the version of the plug-in.

Vendor Name

Shows the name of the plug-in's vendor.

Description

Shows a brief description of the plug-in.

ID

Shows the ID of the plug-in.

Vendor ID

Shows the ID of the plug-in's vendor.

Subsequent Step Conditions

Click this to display the condition for executing the subsequent steps.

Subsequent Step Conditions

Shows the condition for executing the subsequent steps.

Condition list box

Shows the condition for executing the subsequent steps.

• When the return value of the plug-in is judgment level or less, execute subsequent steps
• Always execute subsequent steps
• Never execute subsequent steps

Judgment Level text box

Shows the judgment level. This value and the return value of the plug-in are used to judge whether the condition for executing the subsequent steps is satisfied. The Judgment Level text box is displayed when you select When the return value of the plug-in is judgment level or less, execute subsequent steps in the Condition list box.

Warning Setting check box

If this check box is selected, the step's status changes to the warning status when the return value of the plug-in is equal to or higher than the warning level and equal to or less than the judgment level. The Warning Setting check box is displayed when you select When the return value of the plug-in is judgment level or less, execute subsequent steps in the Condition list box.

Warning Level text box

Shows the warning level. This value and the return value of the plug-in are used to judge whether the condition for executing the subsequent steps is satisfied. The Warning Level text box is displayed when you select When the return value of the plug-in is judgment level or less, execute subsequent steps in the Condition list box.

Specify Plug-in Input Properties for Mapping

Click this to display a list of input properties.

Input Properties

Displays a list of input properties. If you click the column title of a display item, the data will be sorted in ascending or descending order.

Table 7-16 Items displayed in Input Properties (View Step dialog box)

Display item	Description
Input warning icon	If no mapping parameter value has been input for an input property that requires the mapping parameter setting, is displayed.
Key	Displays the property key for the input property.
Name	Displays the name of the input property.
Description	Displays a brief description of the input property.
Mapping Parameter	Displays the mapping parameter for the input property.

Specify Plug-in Output Properties for Mapping

Click this to display a list of output properties.

Output Properties

Displays a list of output properties. If you click the column title of a display item, the data will be sorted in ascending or descending order.

Table 7-17 Items displayed in Output Properties (View Step dialog box)

Display item	Description
Key	Displays the property key of each output property.
Name	Displays the name of each output property.
Description	Displays a brief description of each output property.
Mapping Parameter	Displays the mapping parameter for each output property.

Close button

Click this button to close the View Step dialog.
