7.2.10 Create Output Property for Plug-in dialog box

Use the Create Output Property for Plug-in dialog box to add an output property to the plug-in. To display the Create Output Property for Plug-in dialog box, in the Create Plug-in dialog box or in the Edit Plug-in dialog box, click the Add button in the Output Properties section.

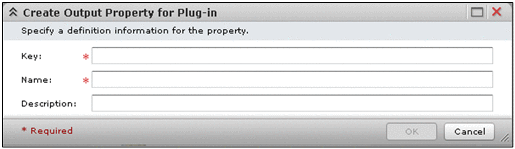

Figure 7-12 Create Output Property for Plug-in dialog box

This dialog box displays the following items:

Key text box

Enter a property key. The text box allows a maximum of 128 characters.

Name text box

Enter the name of the property. The text box allows a maximum of 128 characters.

Description text box

Enter a brief description of the property. The text box allows a maximum of 256 characters.

OK button

Click this button to add the output property to the plug-in.

Cancel button

Click this button to close the Create Output Property for Plug-in dialog box.
