7.2.9 Edit Input Property for Plug-in dialog box

Use the Edit Input Property for Plug-in dialog box to edit an input property defined for the plug-in. To display the Edit Input Property for Plug-in dialog box, in the Create Plug-in dialog box or in the Edit Plug-in dialog box, click the Edit button in the Input Properties section.

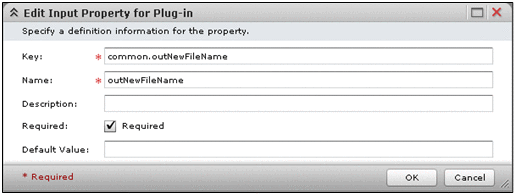

Figure 7-11 Edit Input Property for Plug-in dialog box

This dialog box displays the following items:

Key text box

Enter a property key. The text box allows a maximum of 128 characters. If you select a reserved plug-in property, you cannot edit the Key text box.

Name text box

Enter the name of the property. The text box allows a maximum of 128 characters.

Description text box

Enter a brief description of the property. The text box allows a maximum of 256 characters.

Required check box

Sets whether a value must be entered for the property. Select this check box to require a value to be entered for the property. If you select a reserved plug-in property, you cannot select the Required check box.

Default Value text box

Enter the default value for the property. The text box allows a maximum of 1,024 characters.

OK button

Click this button to apply the changes.

Cancel button

Click this button to close the Edit Input Property for Plug-in dialog box.
