6.3.1 Set Service Share Property dialog box

Use the Set Service Share Property dialog box to change the settings of service share properties that are set in JP1/AO.

To display the Set Service Share Property dialog box, select a service share property in the in the Service Share Properties view and then click the Set Service Share Property button.

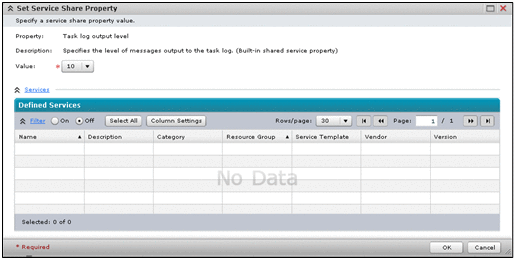

Figure 6-7 Set Service Share Property dialog box (setting the log output level for tasks)

[Figure]

The following items are displayed in this dialog box:

Property: The name of the service share property to be set is displayed.

Description: A brief description of the service share property is displayed. If Built-in shared service property is displayed in here, the property is provided by JP1/AO.

Value: Set the value of the service share property. The value to be entered here varies depending on the type of properties.

Services: If you click this text, a list of services that define the selected service share property is displayed.

Defined Services

A list of services that define the selected service share property is displayed. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box.

Table 6-4 Items displayed in Defined Services (Set Service Share Property dialog box)

Display item	Displayed by default	Description
Name	Yes	Displays the name of each service.
Description	Yes	Displays a brief description of each service.
Category	Yes	Displays the category of each service.
Resource Group	No	Displays a resource group to which the service is assigned.
Service Template	No	Displays the name of each service template.
Vendor	No	Displays the display name of the service template vendor.
Version	No	Displays the version of each service template.
Configuration Type	No	Displays the configuration type of the service template.

Legend:: Yes: Displayed by default, No: Hidden by default

OK button: To apply the change made to the service share property value, click this button.

Cancel button: To close the Set Service Share Property dialog box, click this button.
