6.3 Service Share Properties view

Use the Service Share Properties view to check the settings of properties that are shared among services set in JP1/AO (service share properties).

To display the Service Share Properties view, select the Service Share Properties menu in the Administration window.

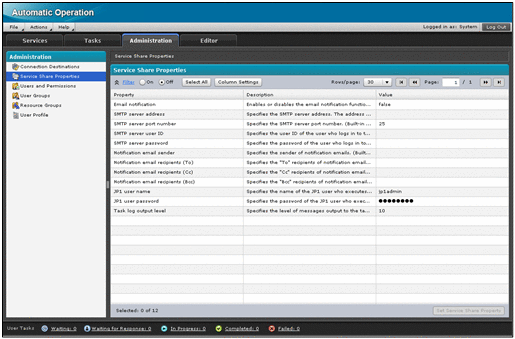

Figure 6-6 Service Share Properties view

[Figure]

The following items are displayed in this view:

Service Share Properties

A list showing service share property information is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be display in this list, use the Column Settings dialog box.

Table 6-3 Items displayed in the list of service share properties (Service Share Properties view)

Display item	Displayed by default	Description
Property	Yes	Displays the name of each service share property.
Description	Yes	Displays a brief description of each service share property.
Value	Yes	Displays the value of each service share property.
Key	No	Displays the key of each service share property.
#	No	Displays the order in which each property is displayed in the Service Share Properties view.

Legend:: Yes: Displayed by default, No: Hidden by default

Set Service Share Property button: If you select a service share property and then click this button, the Set Service Share Property dialog box appears.

Organization of this section: 6.3.1 Set Service Share Property dialog box
