6.2 Connection Destinations view

Use the Connection Destinations view to check the connection destination definition used for connecting to the connection destination.

To display the Connection Destinations view, select the Connection Destinations menu in the left pane of the Administration window.

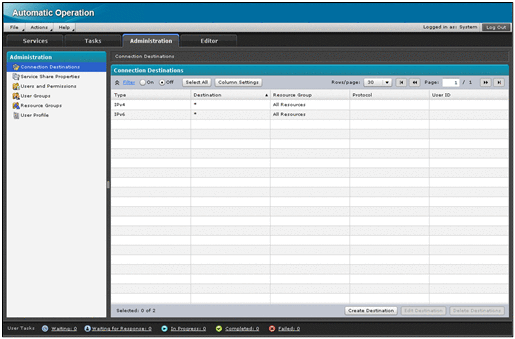

Figure 6-2 Connection Destinations view

The following items are displayed in this view:

Connection Destinations

A list of connection destinations is displayed here. If you click the title of a display item, the data will be sorted in ascending order or in descending order. To select the items to be displayed in this list, use the Column Settings dialog box. You can register a maximum of 10,000 connection destinations.

Table 6-1 Items displayed in the list of connection destination definitions (Connection Destinations view)

Display item	Displayed by default	Description
Type	Yes	Displays the type of connection destination (host name, IPv4, or IPv6).
Destination	Yes	Displays the name or IP address of the host at the connection destination.
Resource Group	Yes	Displays the name of the resource group.
Protocol	Yes	Displays the protocol for connecting to the connection destination.
User ID	Yes	Displays the user ID for connecting to the connection destination.

Legend:

Yes: Displayed by default

Create Destination button

If you click this button, the Create Destination dialog box appears.

Edit Destination button

If you select a connection destination and then click this button, the Edit Connection Destination dialog box appears.

Delete Destinations button

If you select a connection destination and then click this button, the Delete Destinations dialog box appears. You can select multiple connection destinations at a time.

Organization of this section

6.2.1 Create Connection Destination dialog box

6.2.2 Edit Connection Destination dialog box

6.2.3 Delete Destinations dialog box
