6.1 Administration window

Use the Administration window to specify the JP1/AO user management and resource group management settings.

To display the Administration window, select the Administration tab in the main window.

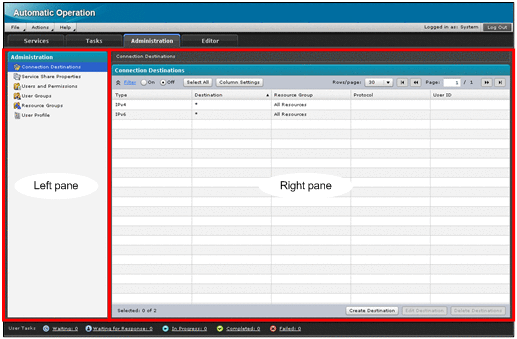

Figure 6-1 Administration window

The following items are displayed in this window:

Left pane

Connection Destinations menu

If you select this menu, the Connection Destinations view is displayed in the right pane.

Service Share Properties menu

If you select this menu, the Service Share Properties view is displayed in the right pane.

Users and Permissions menu

If you select this menu, the Users and Permissions window appears.

User Groups menu

If you select this menu, the User Groups view is displayed in the right pane.

Resource Groups menu

If you select this menu, the Resource Groups view is displayed in the right pane.

User Profile menu

If you select this menu, the User Profile window appears.

Right pane

A window corresponding to the menu selected in the left pane is displayed here.
