3.1 Main window

From the main window, you can perform various JP1/AO operations, including execution of services and confirmation of the progress of tasks.

As you log in to JP1/AO, the main window appears.

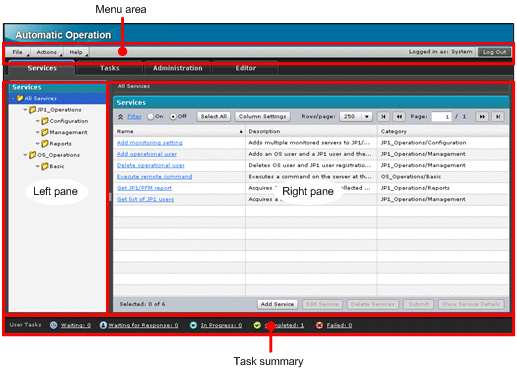

Figure 3-1 Main window

The following items are displayed in this window:

Menu area

The main window menu and the ID of the current user logged in are displayed in this area.

File menu

If you click this menu, the following submenu items appear:

• Close
  If you select this item, a confirmation dialog box appears. To close the main window, click the OK button.

• Log Out
  If you select this item, a confirmation dialog box appears. To log out from JP1/AO, click the OK button. The Login window appears.


Actions menu

If you click this menu, the following submenu items appear:

• Add Service
  If you select this item, the Add Service dialog box appears.


Tools menu

To start Hitachi Command Suite products with single sign-on, click this menu and select Hitachi-Command-Suite-product-name. This menu is displayed only when the Link & Launch function is enabled.

Help menu

If you click this menu, the following submenu items appear:

• Online Manual
  If you select this item, the JP1/AO manuals appear.

• About
  If you select this item, the About dialog box appears.


Logged in as

If you select this item, the ID of a logged-in user is displayed as follows:

• For JP1 users:
  The JP1 user name is displayed.

• For users other than JP1 users:
  The full name specified for the logged-in user is displayed. If the full name is not specified, the user ID specified upon login is displayed.


Log Out button

If you select this item, a confirmation dialog box appears. To log out from JP1/AO, click the OK button. The Login window appears.

Left pane

The items corresponding to the Services, Tasks, Administration, or Editor window are displayed, as follows:

• Services window
  A tree view of the categories to which services are registered is displayed.

• Tasks window
  The categories to which tasks are registered as well as a history node are displayed. The displayed categories correspond to the categories in the Services window.

• Administration window
  Menu items available in the Administration window are displayed, including Users and Permissions and Connection Destinations.

• Editor window
  A list of plug-ins that can be used to develop service templates is displayed.


Right pane

A list is displayed for a menu item selected in the left pane, such as a list of services or a list of users. A filter area is provided at the top of the list, so that you can filter the items in the list according to a specified condition.

Task summary

A summary of the status of and the number of tasks executed by a logged-in user is displayed.

• Waiting
  If you select this item, the Waiting Task List dialog box appears.

• Waiting for Response
  If you select this item, the Waiting for Response Task List dialog box appears.

• In Progress
  If you select this item, the In Progress Task List dialog box appears.

• Completed
  If you select this item, the Completed Task List dialog box appears.

• Failed
  If you select this item, the Failed Task List dialog box appears.


Organization of this section

3.1.1 About dialog box

3.1.2 Filter area

3.1.3 Column Settings dialog box

3.1.4 Waiting Task List dialog box

3.1.5 Waiting for Response Task List dialog box

3.1.6 In Progress Task List dialog box

3.1.7 Completed Task List dialog box

3.1.8 Failed Task List dialog box
