3.1.3 Column Settings dialog box

Use the Column Settings dialog box to select the columns to be displayed in a list.

To display the Column Settings dialog box, click the Column Settings button in the filter area.

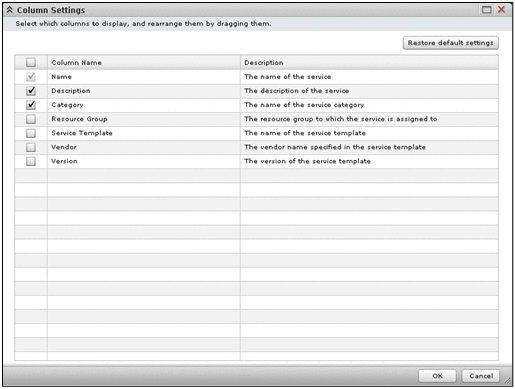

Figure 3-5 Column Settings dialog box

[Figure]

The following items are displayed in this dialog box:

Restore default settings button: Click this button to reset the column settings to the JP1/AO default. For details about the default column settings for each window, see the Displayed by default settings for each window, which are presented later in this manual.

Column Settings

You can select the items to be displayed in the list by selecting the show/hide check boxes. You can sort the list in ascending or descending order by clicking column titles. You can also re-arrange the order in which to display these items by dragging any given item to a desired position.

Table 3-1 Items displayed in the column settings list (Column Settings dialog box)

Display item	Description
Show/hide check box	To display a desired column in the list, select the corresponding show/hide check box.
Column Name	The name of each column is displayed here.
Description	A brief description of each column is provided here.

OK button: Click this button to apply the specified column settings.

Cancel button: Click this button to close the Column Settings dialog box.
