Define the system files in the HiRDB system definitions.

(a) Unit control information definitions (for unit status files)

Define the unit status files in the unit control information definitions.

Definition example

set pd_syssts_file_name_1="usts1","C:\sysarea01\usts01a"\ ,"C:\sysarea02\usts01b" set pd_syssts_file_name_2="usts2","C:\sysarea02\usts02a"\ ,"C:\sysarea03\usts02b" set pd_syssts_file_name_3="usts3","C:\sysarea03\usts03a"\ ,"C:\sysarea01\usts03b"

(b) Single server definitions

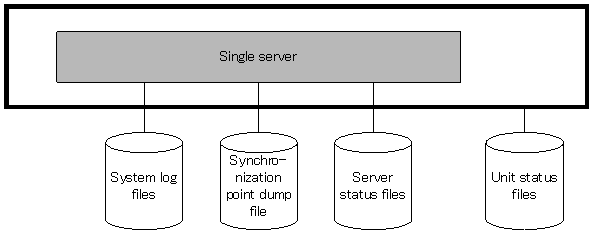

Define system log files, the synchronization point dump file, and server status files in the single server definitions.

Definition example of system log files

set pd_log_rec_leng=4096 pdlogadfg -d sys -g log1 ONL pdlogadfg -d sys -g log2 ONL pdlogadfg -d sys -g log3 ONL pdlogadpf -d sys -g log1 -a "C:\sysarea01\log01a"\ -b "C:\sysarea02\log01b" pdlogadpf -d sys -g log2 -a "C:\sysarea02\log02a"\ -b "C:\sysarea03\log02b" pdlogadpf -d sys -g log3 -a "C:\sysarea03\log03a"\ -b "C:\sysarea01\log03b"

Definition example of synchronization point dump files

pdlogadfg -d spd -g sync1 ONL pdlogadfg -d spd -g sync2 ONL pdlogadfg -d spd -g sync3 ONL pdlogadpf -d spd -g sync1 -a "C:\sysarea01\sync01" pdlogadpf -d spd -g sync2 -a "C:\sysarea02\sync02" pdlogadpf -d spd -g sync3 -a "C:\sysarea03\sync03"

Definition example of server status files

set pd_sts_file_name_1="ssts1","C:\sysarea01\ssts01a"\ ,"C:\sysarea02\ssts01b" set pd_sts_file_name_2="ssts2","C:\sysarea02\ssts02a"\ ,"C:\sysarea03\ssts02b" set pd_sts_file_name_3="ssts3","C:\sysarea03\ssts03a"\ ,"C:\sysarea01\ssts03b"

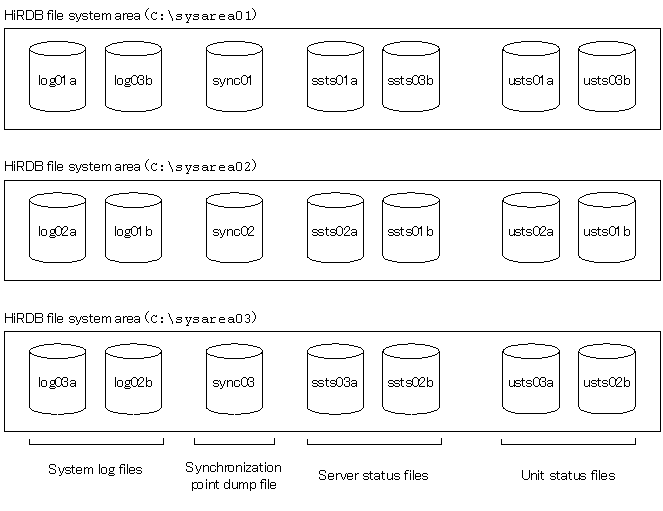

Use the pdfmkfs command to create the HiRDB file system areas.

Example of command entry

pdfmkfs -n 50 -l 20 -i -k SYS C:\sysarea01 pdfmkfs -n 50 -l 20 -i -k SYS C:\sysarea02 pdfmkfs -n 50 -l 20 -i -k SYS C:\sysarea03

(a) Creating the system log files

Use the pdloginit command to create the system log files.

Example of command entry

pdloginit -d sys -f C:\sysarea01\log01a -n 1024 pdloginit -d sys -f C:\sysarea01\log03b -n 1024 pdloginit -d sys -f C:\sysarea02\log02a -n 1024 pdloginit -d sys -f C:\sysarea02\log01b -n 1024 pdloginit -d sys -f C:\sysarea03\log03a -n 1024 pdloginit -d sys -f C:\sysarea03\log02b -n 1024

(b) Creating the synchronization point dump file

Use the pdloginit command to create the synchronization point dump file.

Example of command entry

pdloginit -d spd -f C:\sysarea01\sync01 -n 64 pdloginit -d spd -f C:\sysarea02\sync02 -n 64 pdloginit -d spd -f C:\sysarea03\sync03 -n 64

(c) Creating the server status files

Use the pdstsinit command to create the server status files.

Example of command entry

pdstsinit -s sds1 -f C:\sysarea01\ssts01a -l 4096 -c 256 pdstsinit -s sds1 -f C:\sysarea01\ssts03b -l 4096 -c 256 pdstsinit -s sds1 -f C:\sysarea02\ssts02a -l 4096 -c 256 pdstsinit -s sds1 -f C:\sysarea02\ssts01b -l 4096 -c 256 pdstsinit -s sds1 -f C:\sysarea03\ssts03a -l 4096 -c 256 pdstsinit -s sds1 -f C:\sysarea03\ssts02b -l 4096 -c 256

(d) Creating the unit status files

Use the pdstsinit command to create the unit status files.

Example of command entry

pdstsinit -u unt1 -f C:\sysarea01\usts01a -l 4096 -c 256 pdstsinit -u unt1 -f C:\sysarea01\usts03b -l 4096 -c 256 pdstsinit -u unt1 -f C:\sysarea02\usts02a -l 4096 -c 256 pdstsinit -u unt1 -f C:\sysarea02\usts01b -l 4096 -c 256 pdstsinit -u unt1 -f C:\sysarea03\usts03a -l 4096 -c 256 pdstsinit -u unt1 -f C:\sysarea03\usts02b -l 4096 -c 256
