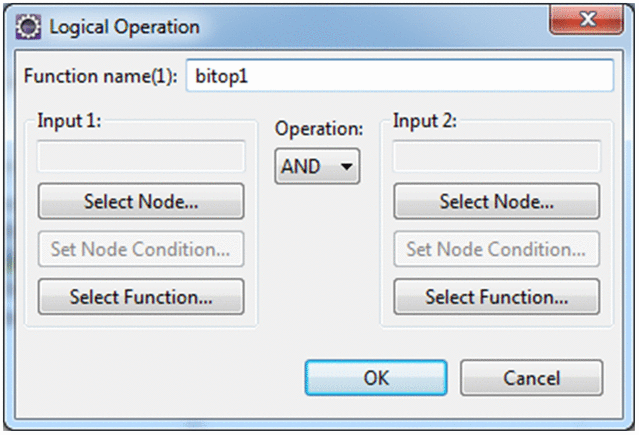

[Function name]

Displays the function name. . If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.

[Input 1]

Specify a node that contains the node you want to target for logical operation. If a node is already mapped to logical operation, that node is displayed.

For details about the display format in [Input 1], see "6.4.6 Mapping Source Display Format" in "Service Platform Basic Development Guide".

[Select Node] button

Displays the [Select Node] dialog. Click this button when you want to specify a node in [Input 1] for logical operation.

For details about the [Select Node] dialog , see "1.6.6 Select Node Dialog (Data Transformation)".

[Set Node Condition] button

Displays the [Set Node Condition] dialog. Click this button to specify a condition for the node and allow only mapping to take place only when that condition is satisfied.

For details about the [Set Node Condition] dialog, see "1.6.9 Set Node Condition Dialog". For details about how to set node condition, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".

[Select function] button

Displays the [Select function] dialog. Click this button when you want to specify a function for Logical operation in [Input 1].

Foe details about the [Select function] dialog, see "1.6.7 Select function dialog".

[Operation] drop down list

Displays the operator to be specified in condition format. The displayed operators are as follows:

• AND (Logical conjunction)
• OR (Logical disjunction)
• XOR (Exclusive disjunction)

[Input 2]

Specify a node that contains the node you want for logical operation. If a node is already mapped to logical operation, that node is displayed.

For details about the display format in [Input 2], see "6.4.6 Mapping Source Display Format" in "Service Platform Basic Development Guide".

[Select Node] button

Displays the [Select Node] dialog. Click this button when you add the node set that contains the nodes that you want to sum up in [Input 2].

For details about the [Select Node] dialog, see "1.6.6 Select Node Dialog (Data Transformation)".

[Set Node Condition] button

Displays the [Set Node Condition] dialog. Click this button to specify a condition for the node and allow only mapping to take place only when that condition is satisfied.

For details about the [Set Node Condition] dialog, see "1.6.9 Set Node Condition Dialog". For details about how to set node conditions, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".

[Select function] button

Displays the [Select function] dialog. Click this button when you want to specify a function for Logical operation in [Input 1].

Foe details about the [Select function] dialog, see "1.6.7 Select function dialog".

[OK] button

Commits the specified contents and closes the dialog.

[Cancel] button

Does not commit the specified contents and closes the dialog.

You can set the logical operation function with the [Logical operation] dialog. For details about how to set logical function, see "6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
