[Function name]

Displays the function name. . If you want to change to any name, specify within 64 characters. You can use NCName definition characters of XML schema.

[Input]

Specify the node for as NOT operation target. If a node is already mapped to NOT operation, that node is will be displayed.

For details about the display format in [Input], see "6.4.6 Mapping Source Display Format" in "Service Platform Basic Development Guide".

[Select Node] button

Displays the [Select Node] dialog. Click when you want to specify a node for NOT operation.

For details about the [Select Node] dialog, see "1.6.6 Select Node Dialog (Data Transformation)".

[Set Node Condition] button

Displays the [Set Node Condition] dialog. Click this button to specify a condition for the node and allow only mapping to take place only when that condition is satisfied.

For details about [Set Node Condition] dialog, see "1.6.9 Set Node Condition Dialog". For details about how to set conditions for nodes, see "6.7 Specifying Node Conditions" in "Service Platform Basic Development Guide".

[Select function] button

Displays the [Select function] dialog. Click this button when you want to specify a function for NOT operation in [Input].

For details about [Select function] dialog, see "1.6.7 Select function dialog".

[OK] button

Enables the specified contents and closes the dialog.

[Cancel] button

Cancels the specified contents and closes the dialog.

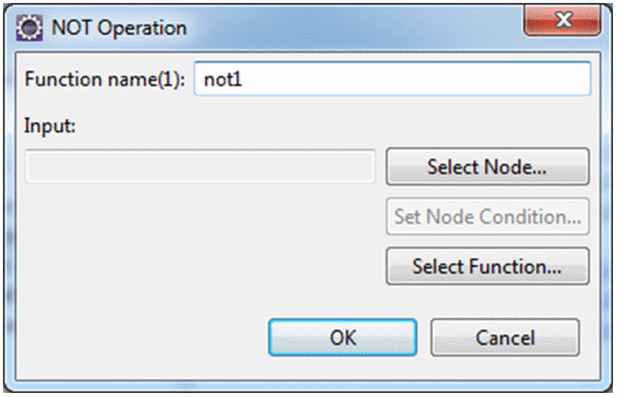

You can set the NOT operation function with the [NOT operation] dialog. For details about how to set the NOT operation function, see "6.5 Processing value or node in which function is used" in "Service Platform Basic Development Guide".
