The following table describes the types of message format to be used in HTTP reception. You can create a message format using XML schema provided by service platform.

Table 2-9 Types of message format

Major classification	Minor classification	Description
Request message format	For header variable	Set the header information and URL information of HTTP request.
	For body variable (main)	Set the body information of HTTP request.
	For body variable (details)	It is referenced as a part of request message format (body variable (main)).
Response message format	For header variable	Set the header information of HTTP response.
	For body variable	Set the body information of HTTP response.

Create a message format other than the above-mentioned to use validation activity in a business process.

The request message format and response message format to be used in HTTP reception is described here.

(a) urecp_http_header_request.xsd(request message format(for header variable))

The following table describes the request message format of header variable, which is passed on to HTTP reception, when HTTP reception is invoked by a business process. The name of the namespace is "http://www.hitachi.co.jp/soft/xml/cosminexus/csc/reception/http/request".

Table 2-10 Request message format (for header variable)

Tag name				Type	Occurrence count	Description
<http-header-request>				-	1 time	-
	<auth>			-	0 or 1 time	When HTTP header authentication is specified, this tag is created.
		<username>		string	1 time	Name of the authenticated user is set. Information about the user name is decoded in plain text and it is set.
	<method>			string	1 time	HTTP method used in HTTP reception (GET or POST) is set.
	<url>			-	1 time	Location information and query string are set from the request URL.
		<location>		string	1 time	Location information is set.
		<query>		string	0 or 1 time	Request string is set.
	<content-type>			string	0 or 1 time	Media type specified in Content-Type header is set. Charset attribute (character code) specified in Content-Type header is set in charset attribute of content-type tag. This attribute is not set, if charset attribute is not provided.
	<request-id>			string	0 or 1 time	Request ID generated by HTTP reception is set.
	<files>			-	0 or 1 time	List of intermediate files generated within the working folder is set based on the multi-part data received from HTTP client.
		<file>		-	More than 0 time	The intermediate files generated within the working folder are set based on the multi-part data received from HTTP client.
			<partID>	string	0 or 1 time	Identifier for differentiating each part is set. This part ID corresponds to name attribute of Content-Disposition header of each part within multi-part data received by HTTP reception.
			<file-name>	string	0 or 1 time	File name of the file data received from HTTP client is set. This file name corresponds to filename attribute of Content-Disposition header of each part within multi-part data received by HTTP reception. In case of path specification, only the file name is set.
			<local-file-name>	string	1 time	Name of the intermediate file generated within the working folder is set. Name of the intermediate file is unique within the working folder.
			<content-type>	string	0 or 1 time	Media type of the file data received by HTTP reception is set. This content type corresponds to the value of Content-Type header of each part within the multi-part data received by HTTP reception. If Content-Type header of each part is omitted, this tag is not generated. Charset attribute (character code) specified in Content-Type header of each part is set in charset attribute of content-type tag. This attribute is not set, if charset attribute is not provided.
	<http-header>			any	0 or 1 time	The HTTP header information received by HTTP reception is converted into header variable and it is set. For details, see 2.13.4 HTTP reception request process in the manual Service Platform Overview.

Legend:

-: Corresponding item does not exist.

(b) urecp_http_body_request.xsd(request message format (for body variable))

The following table describes the request message format of the body variable passed on to HTTP reception, when HTTP reception is invoked by a business process. Name of each namespace is "http://www.hitachi.co.jp/soft/xml/cosminexus/csc/reception/http/request".

Table 2-11 Request message format (for body variable)

Tag name		Type	Occurrence count	Description
<http-body-request>		-	1 time	-
	<parameter>	http-body-requestType	More than 0 time	The information of the request body is converted into body variable and it is set. For details, see 2.13.4 HTTP reception request process in the manual Service Platform Overview.

Legend:

-: Corresponding item does not exist.

(c) urecp_http_header_response.xsd(response message format (for header variable))

The following table describes the response message format of the header variable, which is passed on, when a business process is invoked by HTTP reception. Name of the namespace is "http://www.hitachi.co.jp/soft/xml/cosminexus/csc/reception/http/response".

Table 2-12 Response message format

Tag name				Type	Occurrence count	Description
<http-header-response>				-	1 time	-
	<status-code>			string	0 or 1 time	Specify the status code of HTTP response.
	<content-type>			string	0 or 1 time	Specify Content-Type header of the data indicated in the response message (for body variable) of HTTP reception. If null is specified, it is considered that this element is omitted. If data type is multi-part, the content type is to be used as Content-Type header to be provided for response message (for body variable) converted into part. Specify character code which is used as charset attribute of Content-Type header in charset attribute of content-type element. If null is specified, it is considered that this element is omitted. If charset attribute or any other attribute is specified in the value of content-type element, operation is not guaranteed.
	<body-partID>			string	0 or 1 time	When sending multi-part data to HTTP client, specify the value of name attribute of Content-Disposition header to be provided for response message (for body variable) converted into part. If you omit value of body-partID element and store response message (for body variable) in multi-part data, "csc-body-text" is set in the value of this name attribute. If the data type is not multi-part, this value is ignored.
	<ignore-bodymsg>			boolean	0 or 1 time	Ignore response message (body) and specify whether to return HTTP response to HTTP client. If you specify true in the value of this element, HTTP response is returned to HTTP client and response message (body) is ignored. If false is specified, response message (body) is used. If you do not specify this element or if you specify an invalid string in this element, the value specified in httprecp.response.ignore-bodymsg property of HTTP reception definition file is applied. If you specify a value in both ignore-bodymsg element of response message (header) and httprecp.response.ignore-bodymsg property of HTTP reception definition file, specification of response message (header) gets a priority.
	<files>			string	0 or 1 time	Specify a list of intermediate files to be read from the working folder and to be sent to HTTP client.
		<file>		-	More than 0 time	Specify an intermediate file to be read from the working folder and to be sent to HTTP client.
			<partID>	string	0 or 1 time	Specify an identifier for identifying each part, when the data type is multi-part. This is a string to be provided for the value of name attribute of Content-Disposition header with each part unit of multi-part data in HTTP response. If this tag is omitted, the value of local-file-name tag is set. When the value of ignore-bodymsg element is "true" or httprecp.response.ignore-bodymsg property of HTTP reception definition file is "true" (setting to ignore response message (body)) and the intermediate file to be sent to HTTP client is 1, specification of this tag is ignored since it is not multi-part type.
			<file-name>	string	0 or 1 time	Specify the file name, when it is to be downloaded by HTTP client. This is a string to be provided for the value of filename attribute of Content-Disposition header in each part of multi-part data in HTTP response. If you omit this tag, filename attribute is not set.
			<local-file-name>	string	1 time	Specify name of the intermediate file within the working folder to be downloaded to HTTP client. File having name specified in this tag is read from the working folder and it is set in body part of HTTP response or body part of each part of multi-part data. If you omit this tag, a system exception occurs.
			<content-type>	string	0 or 1 time	Specify media type of the file to be sent HTTP client. This is a value to be provided to Content-Type header in each part of multi-path data in HTTP response. If you omit this tag, the media type is not set. If you specify null, it is considered that specification of this element is omitted. Specify the character code to be used as charset attribute of Content-Type header in charset attribute of content-type element. If you specify null, it is considered that specification of this element is omitted. If you specify charset attribute or any other attribute in the value of content-type element, the operation is not guaranteed.
	<http-header>			any	0 or 1 time	Specify the information of HTTP response header. Specify this tag as a child element of <http-header> by considering the element name as header field and the value as header value. If you do not specify, the information of HTTP response header definition file is used as HTTP response header.

Legend:

-: Corresponding item does not exist.

(d) urecp_http_dummy_body_response.xsd (response message format (for body variable))

The following table describes the response message format of the body variable to be passed on when HTTP reception invokes a business process. The name of the namespace is "http://www.hitachi.co.jp/soft/xml/cosminexus/csc/reception/http/response".

Note that this message format is the dummy format of the response message format (for body variable). Use this message format, when either the value of ignore-bodymsg element of response message (header) is "true" or the value of httprecp.response.ignore-bodymsg property of HTTP reception definition file is "true" (settings for ignoring response message (body)).

In case of settings for ignoring response message (body), if you do not set response message format (for body variable) in HTTP reception, the business process cannot return a variable, since the variable of response message (body) does not exist. Therefore, it is recommended that you set this dummy format in HTTP reception, create a variable of response message (body), and assign it to reply activity.

Table 2-13 Request message format (for body variable) (in case of setting for ignoring response message (body))

Tag name		Type	Occurrence count	Description
<http-body-response>		-	1 time	-
	<any>	string	More than 0 time	-

Legend:

-: Corresponding item does not exist.

In case of setting for not ignoring the response message (body), the user must create response message format (for body variable) for HTTP response.

Method of creating message format to be used in HTTP reception is described here.

XML schema of the message format provided by service platform is stored in "Installation directory of service platform\CSC\custom-reception\http\schema". When editing this schema, first copy it at any location in each folder.

The following table describes relation of XML schema to be used with the message format:

Table 2-14 Relation of XML schemas to be used with the message format

Message format	XML schema to be used	Editing by user	Description
Request message format (for header variable)	urecp_http_header_request.xsd	Not required	Use XML schema file provided by service platform as-is.
Request message format (for body variable (main))#	urecp_http_body_request.xsd	Not required	Use XML schema file provided by service platform as-is.
Request message format (for body variable (details))#	urecp_http_body_detail_request.xsd	Optional	When using value of request message (body), edit the XML schema file provided by service platform partially and use them. When you do not use value of request message (body), do not use the XML schema file provided by service platform.
Response message format (for header variable)	urecp_http_header_response.xsd	Not required	Use the XML schema file provided by service platform as-is.
Response message format (for body variable)#	urecp_http_dummy_body_response.xsd	Not required	Use the XML schema file provided by service platform as-is. It is recommended that you this file in case of settings for ignoring response message (body).
	To be created by user	Required	If the option of "Do not ignore response message (body)" is set, the user must create the message format as per the contents of HTTP request.

Note#

When using HTTP reception in pass-through mode, the user must create this message format as per the contents of HTTP request and HTTP response.

The following table describes the method of creating XML schema of request message format (for body variable) and response message format (for body variable) (in case of to be created by user):

(a) Creating request message format (for body variable)

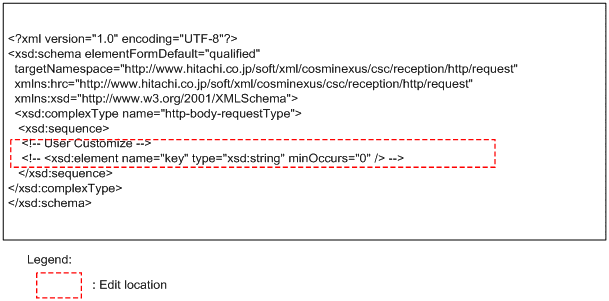

1. Open XML schema file (urecp_http_body_detail_request.xsd) using XML editor and edit the part enclosed within the framework of the following figure.




   Note the following points when editing the XML schema file:

   • When adding an element, define it as a child element of <http-body-request>. Do not define the structure of a child element.
   • If the key corresponding to the defined element is not present in the query string of HTTP request, the element defined in the request message is not created.
   • If the key which is not defined as an element is present in the query string of HTTP request, the element corresponding to the key in the request message is created.
2. Save the XML schema file.

(b) Creating response message format (for body variable)

1. Create any XML schema file using XML editor.
   For details on the example of creating response message format (for body variable), see Appendix F Example for setting up business processes using HTTP reception.

2. Save this file in any directory as "urecp_http_body_response.xsd".
