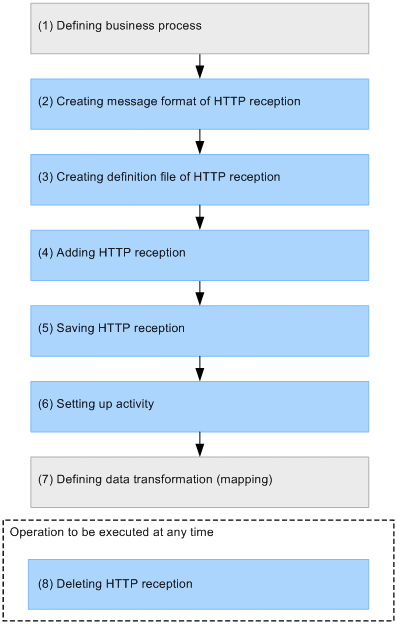

Add a business process using the wizard and a defined business process. Define the added business in the business process definition screen. For details on the definition of a business process, see 5. Defining a Business Process in the manual Service Platform Basic Development Guide.

Also, you must define a service adapter to invoke a service component from a business process. For details on defining a service adapter, see 3. Defining Adapters.

Create the request message format and the response message format to be used in the HTTP reception.

For details on how to create a message format, see 2.5.2 Creating message format of HTTP reception.

Create the definition file to be used in the HTTP reception. The created definition file is reflected in the repository.

For details on how to create the definition file to be used in HTTP reception, see 2.5.3 Creating definition file of HTTP reception.

Add HTTP reception in the service definition list in tree view and define its contents.

For details on how to add and define the HTTP reception, see 2.5.4 Adding HTTP reception.

Save HTTP reception that is added and defined. For details on how to save HTTP reception, see 2.9 Saving a user-defined reception.

Set the body variables and header variables belonging to request message format/response message format of HTTP reception in the activity of a business process.

For details on how to set an activity, see 2.5.5 Setting up an activity.

If data transformation is required while receiving and sending a message, define data transformation. For details on how to define data transformation, see 6. Defining Data Transformation in the manual Service Platform Basic Development Guide.

For details on the example of mapping in case of using HTTP reception, see Appendix F Example for setting up business processes using HTTP reception.

You can delete the unwanted HTTP reception, if necessary.

For details on deleting HTTP reception, see 2.12 Deleting a User-Defined Reception.
