8.6.5 Specifying Parameters (TP1/EE or JMS)

Assemble binary data by specifying the parameters that correspond to the individual tags (Items 5, 8, 11, 17, 20, 23, and 26 in Table 8-17) in the binary data created.

The following figure shows the binary data tag format.

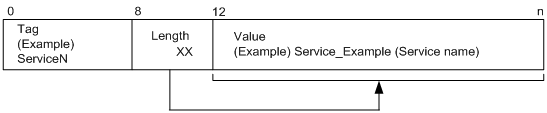

Figure 8-27 Binary data tag format

[Figure]

The tags may occur inside the binary data in any order. However, the order in which the tag, size, and value occur is fixed as shown in Figure 8-27.

Additionally, specify a binary-converted message (request message) after the database queue headers (Items 1 through 28). If there is no request message, you can also specify MgLength for the tag of Item 26 and set its size to 0.
