8.5 Service Requester That Sends Requests to a Standard Asynchronous Reception (MDB (WS-R))

A service requester that sends request messages to a standard asynchronous reception (MDB (WS-R)) communicates with the standard reception via a transmission queue and a receive queue.

A request message sent from the service requester to the transmission queue is sent to the asynchronous reception (MDB (WS-R)) via the receive queue.

The following figure shows the relationship between a service requester that sends requests to a standard asynchronous reception (MDB (WS-R)) and an HCSC server.

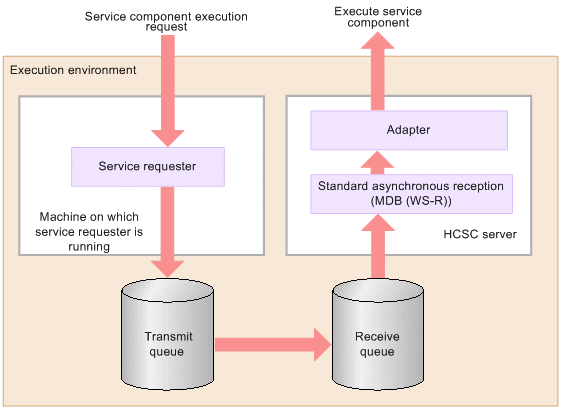

Figure 8-19 Relationship between a service requester that sends requests to a standard asynchronous reception (MDB (WS-R)) and an HCSC server

[Figure]

Organization of this section
8.5.1 Procedure for Creating a Service Requester (Standard Asynchronous Reception (MDB (WS-R))
8.5.2 Creating a Transmission Queue
8.5.3 Creating JMS Messages
8.5.4 Specifying Parameters
8.5.5 Creating Request Messages
8.5.6 Sending JMS Messages
8.5.7 Setting Up a Response Queue
8.5.8 Extracting Responses
8.5.9 Acquiring Response Messages
