6.13.13 BitOpObjects(Logical operation function)

This section defines the Logical operation function (bitop).

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes definition items:

Table 6-38 TableBitOpObjectsDefinition item

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName type This is mandatory item. You cannot define the Name in Objects, in duplication.
Input1 Input 1 See "6.12.2 Setting up the mapping definition".
Input2 Input 2 See "6.12.2 Setting up the mapping definition" -

(Legend)
-: Corresponding item does not exist.

(2) Definition example

Following figure shows the definition example:

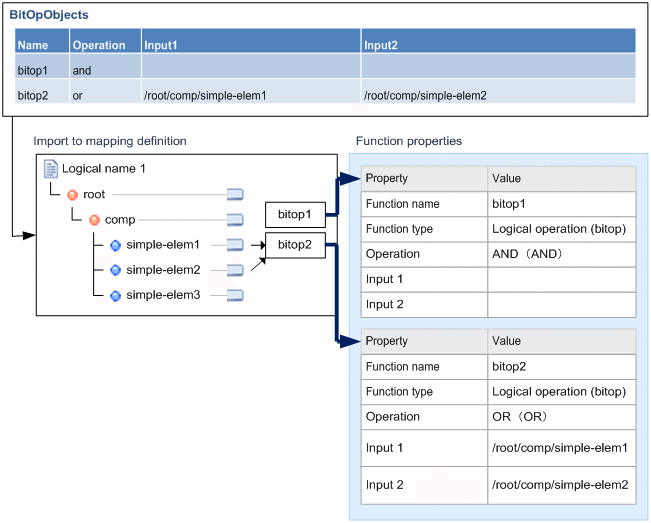

Figure 6-77 FigureBitOpObjectsDefinition example

[Figure]
