6.5.3 Assigning a String Character Count

Assigns the character count of a string of the mapping source to the mapping destination.

Organization of this subsection
(1) Function used
(2) Setup procedure

(1) Function used

To assign the character count of a string of the mapping source to the mapping destination, you use the acquire string length function. The following figure shows an example that uses the acquire string length function.

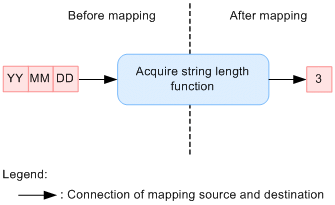

Figure 6-4 Usage example of the acquire string length function

[Figure]

(2) Setup procedure

To assign the character count of a string of the mapping source to the mapping destination:

  1. From the palette, choose the acquire string length function (length), and deploy it in the mapping viewer.
  2. Set up a mapping line.
  3. Use one of the following methods to open the Acquire String dialog box:
    • Right--click the acquire string length function, and choose Setting.
    • Double--click the acquire string length function.
    The Acquire String dialog box opens.
    For details about the Acquire String dialog box, see the manual Cosminexus Service Platform Overview.
  4. When a transformation-source node is specified in Input, to specify a condition for the transformation-source node and map it only when this condition is satisfied, click Set Node Condition.
    The Set Node Condition dialog box opens.
    For details about how to set a node condition, see 6.7 Specifying Node Conditions. For details about the Set Node Condition dialog box, see the manual Cosminexus Service Platform Reference.
  5. Click OK.
