6.4 Mapping

Mapping means mapping a value at the transformation-source (mapping source) to a value at the transformation-destination (mapping destination). The following figure shows the Mapping screen.

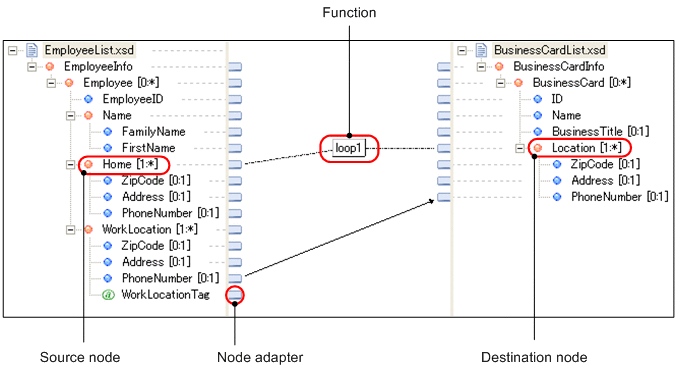

Figure 6-1 Mapping screen

[Figure]

Mapping is largely divided into the following 4 types:

(1) Assigning transformation-source node values directly to transformation-destination nodes
Palette tools and dialog boxes might be used for the operation. For details about mapping methods, see 6.4.1 Assigning Transformation-source Node Values Directly to Transformation-destination Nodes.

(2) Processing the transformation-source node values and mapping them to the transformation-destination node
Use the function for processing values of the transformation-source node.
Palette tools and dialog boxes might be used for the operation. For details about mapping methods, see 6.4.2 Processing the Transformation-source Node Values and Mapping Them to the Transformation-destination Node.

(3) Specifying the scope of transformation-source and destination nodes and mapping automatically
Use dialog boxes for the operation. For details about mapping methods, see 6.4.3 Specifying the Scope of Transformation-source and Destination Nodes and Mapping Automatically.

(4) Specifying a target from the element of the transformation-destination node and mapping automatically
Use dialog boxes for the operation. For details about mapping methods, see 6.4.4 Specifying a Target from the Element of the Transformation-destination Node and Mapping Automatically.

For the method to cancel mapping, see 6.4.5 Canceling Mapping.

For notes on mapping, see 6.4.10 Notes on Mapping.

Organization of this section
6.4.1 Assigning Transformation-source Node Values Directly to Transformation-destination Nodes
6.4.2 Processing the Transformation-source Node Values and Mapping Them to the Transformation-destination Node
6.4.3 Specifying the Scope of Transformation-source and Destination Nodes and Mapping Automatically
6.4.4 Specifying a Target from the Element of the Transformation-destination Node and Mapping Automatically
6.4.5 Canceling Mapping
6.4.6 Mapping Source Display Format
6.4.7 Making Mapping Lines and Functions Easier to View
6.4.8 Restricting mapping range
6.4.9 Determining Similarities during Automatic Mapping
6.4.10 Notes on Mapping
