3.2.2 Exporting a Repository

In exporting the repository, you can consolidate repository in 1 ZIP file and save in the specified directory.

Following are the 2 methods to export a repository.

Organization of this subsection
(1) Exporting a repository
(2) Exporting only a part of service definition

(1) Exporting a repository

Procedure for exporting a repository is as follows:

  1. From Eclipse menu, select [HCSC-Definer]-[Definition information management]-[Export entire definition information].
    [Export repository] dialog is displayed.
  2. Specify a directory for saving and input a name for the ZIP file to be saved.
  3. Click the [Save] button.
    ZIP file is saved in the specified directory.
    If the save destination directory has a file with the same name, a dialog is displayed to confirm overwriting of the file. If you want to overwrite the file, click the [Yes] button and save file.
    Reference note
    It is recommended to export the repository as and when required and take backup of the data of repository.

(2) Exporting only a part of service definition

When exporting by selecting the required services, you can save the following information in specified directory.

You can select multiple export targets. User-defined reception related to the business process to be exported, is also exported concurrently.

Procedure for exporting only a part of service definitions is as follows:

  1. From Eclipse menu, select [HCSC-Definer]-[Definition information management]-[Export services].

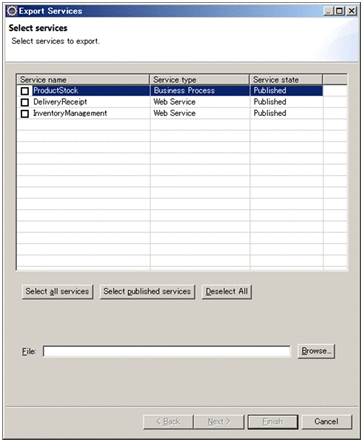

    Select service screen of the service export wizard is displayed.

    [Figure]

  2. Check the checkbox of the service to be exported.
    When you want to check only the publicized services, click [Select only the publicized services].
  3. Specify directory for saving by clicking [Browse] button and input the name of ZIP file to be saved.
    Existence of user-defined Java class is checked and either of [Next] button or [Finish] button is enabled.
  4. Perform either of the following operations:
    When user-defined Java class does not exist
    Click [End] button
    Selected service definition is saved in ZIP file.
    When user-defined Java class exists
    Click [Next] button.

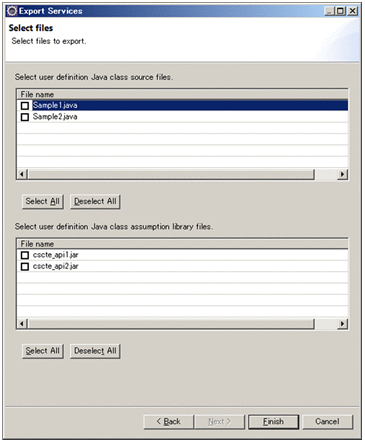

    Select file screen of service export wizard is displayed. Proceed with the following steps:
    [Figure]
  5. Check the checkbox of user-defined Java class to be exported and pre-requisite library file for the same.
  6. Click [End] button.
    Selected service definition is saved in ZIP file.
