With data transformation, you can convert the message format that flows over the business process to a different message format, and process the values. Furthermore, you can also combine multiple messages to create one message.
Use data transformation in cases such as when you must create a message as per the service component request message format at the time of invoking a service component, and when you want to convert the response message from the service component to a different message format.
The following figure shows the flow of data transformation in a business process:
Figure 3-4 Flow of data transformation in a business process
Use the data transformation activity for data transformation.
The following figure shows an example of data transformation:

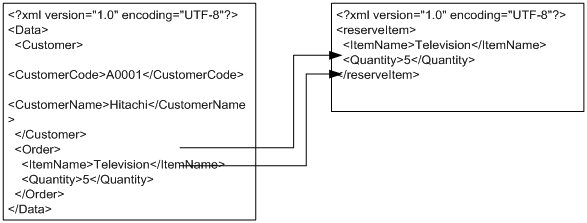

(Example 1) 1 on 1 data transformation

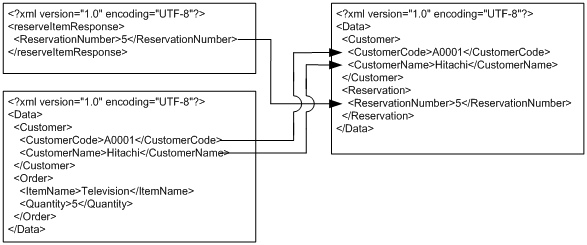

(Example 2) N to 1 data transformation
The following table describes the processes that can be performed by data transformation:
Table 3-1 List of processes that can be performed by data transformation
Process | Description |
---|---|
Concatenate | Concatenates multiple strings. |
Acquire substring | Extracts some portion from one string. |
Acquire string length | Assigns string length of the string to the mapping destination. |
Check string | Checks if the specified string is included in the string and the string starts with the specified string, and assigns the logical value to the mapping destination. |
Trim node | Removes any blank space in the first character and last character of the string. Furthermore, converts the spaces between strings into one-byte space. |
Convert number format | Converts the number format. You can change the decimal-point character and the digit separator. |
Perform node operation | Does number calculation. (+, -, *, div, mod). |
Round node | Rounds up numbers after the decimal. (Round-off, truncate, round-up) |
Sum up nodes | Adds up node numbers of multiple node sets. |
NOT operation | Executes a logical negation operation. |
Logical operation | Executes logical operation. (AND, OR, XOR). |
Shift operation | Executes shift operation. |
Acquire node count | Assigns a node to the mapping destination. |
Acquire node name | Assigns a node name to the mapping destination. |
Check node | Checks if there are specified conversion source nodes and assigns the logical value to the mapping destination. |
Repeat | Maps repeat. You can also sort instances of conversion destination nodes that appear more than once. |
Select | Outputs a different value depending on the conditions. |
Change value | Converts the mapping source value based on the specifications in the conversion table, and assigns to mapping destination. |
Base conversion | Executes base conversion. |
Custom | Can process and create nodes of the value in the Java program created by user. |
Set constant | Assigns a specified value to the mapping destination. |
