uCosminexus Service Platform, Overview
You can set the following timeout duration in HTTP adapter:
You can set each timeout value in HTTP adapter definition file. For details on HTTP adapter definition file, see "HTTP adapter definition file" in "Service Platform Reference Guide" .
You can set connection timeout till connection with the server is established.
The following figure gives an overview of connection timeout:
Figure 2-95 Connection timeout
The following table describes the parameters you can set:
Table 2-46 Setting connection timeout
Value | Key name | Default value |
---|---|---|
Connection timeout (milliseconds) | adphttp.protocol.connect-timeout | 60000 |
You can set read timeout after sending HTTP request till HTTP response is returned. Monitor timeout for each 1 time if HTTP response is returned by splitting into the number of times after HTTP request is sent.
The following figure gives an overview of read timeout:

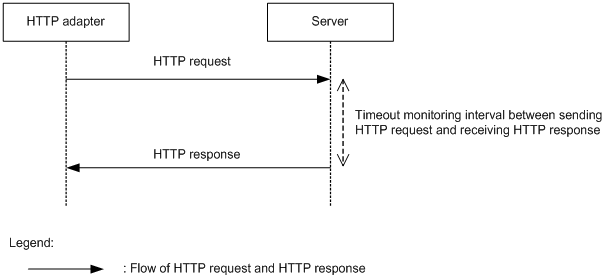

Figure 2-96 Read timeout (if response in 1 time is returned)

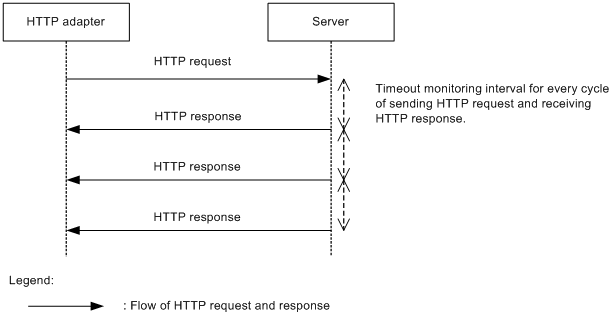

Figure 2-97 Read timeout (if response split 3 times is returned)
The following table describes the parameters you can set:
Table 2-47 Setting read timeout
Value | Key name | Default value |
---|---|---|
Read timeout (milliseconds) | adphttp.protocol.read-timeout | 300000 |
Common lock for the common folder is required to access the common folder from HTTP adapter. At this stage, you can specify lock retry frequency and lock retry interval in HTTP adapter.
The following table shows the parameters you can set:
Table 2-48 Setting read timeout
Value | Key name | Default value |
---|---|---|
Lock retry frequency (times) | adphttp.file.read-lock.retry.count | 0 |
Lock retry interval (seconds) | adphttp.file.read-lock.retry.interval | 1 |
