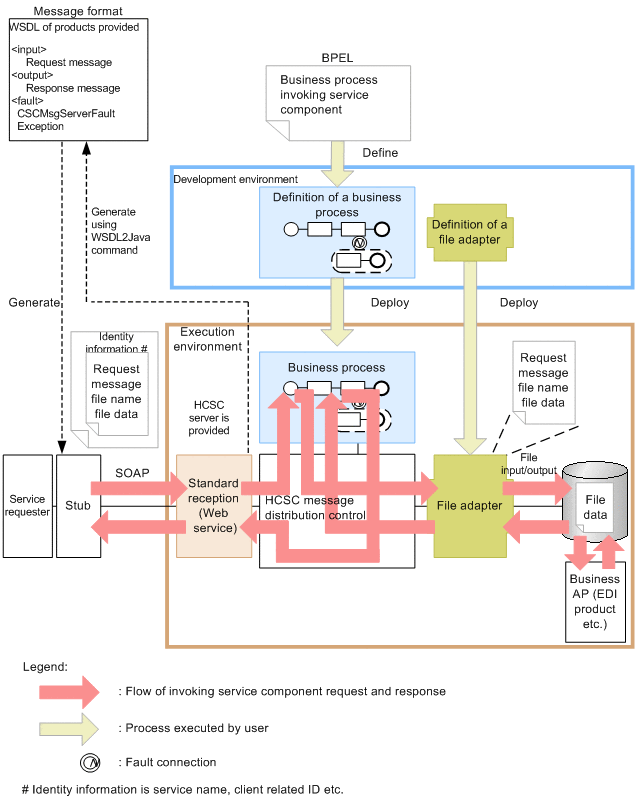

The following figure shows execution of file access by the file adapter:
Figure 2-53 Execution of file access by the file adapter
![[Figure]](FIGURE/ZC030600.GIF)
Define the file adapter in the development environment. For details on the procedure for defining file adapters, see "3. Defining Adapters" in "Service Platform Reception and Adapter Definition Guide" .
