The HCSC server in the execution environment operates with EJB containers of Application Server.

The request reception of the HCSC server is provided as a remote interface of EJB (Stateless Session Bean), and is connected with RMI-IIOP.

The service components created in the EJB (Stateless Session Beans or Stateful Session Bean) are executed from the service adapter of the HCSC server. The following figure shows the relationship with Application Server (EJB container).

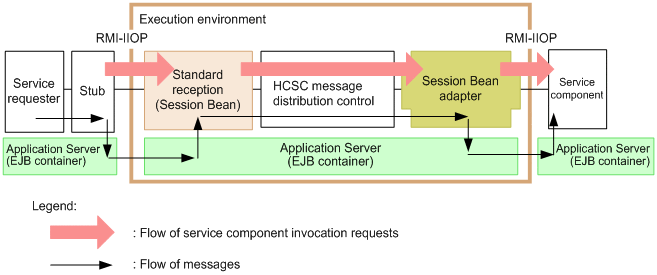

Figure 2-28 Relationship with Application Server (EJB container)
