The following figure shows an overview of setting up an HCSC server.

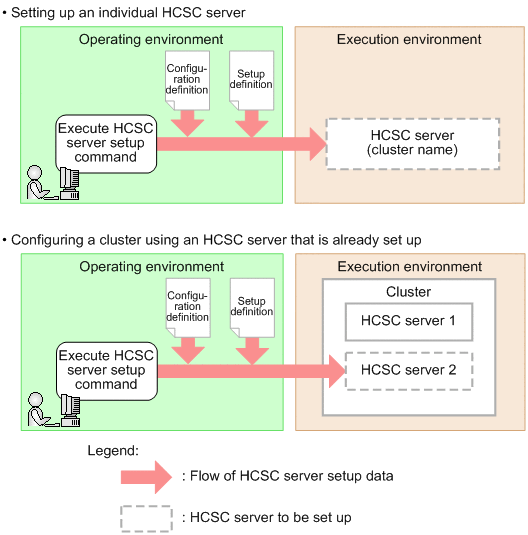

Figure 1-12 Overview of setting up an HCSC server

If you execute a command in the operating environment, the HCSC server is set up by acquiring necessary information required from the HCSC server configuration definition file and setup definition file already created.

Setting up an individual HCSC server

Although the cluster name is specified when the command is executed, a cluster is not configured because only one HCSC server is set up at this stage.

When you set up another HCSC server, you can configure a cluster by specifying the cluster name.

Configuring a cluster by using an HCSC server that is already set up

If you execute the command by specifying a cluster name that was specified for setting up another HCSC server, you can set up the HCSC server that configures a cluster with the already set up HCSC server.
