The binding extension elements of the WSDL binding and the Java method parameters are mapped in accordance with the JAX-WS 2.2 specifications. The following figure shows an example of mapping:

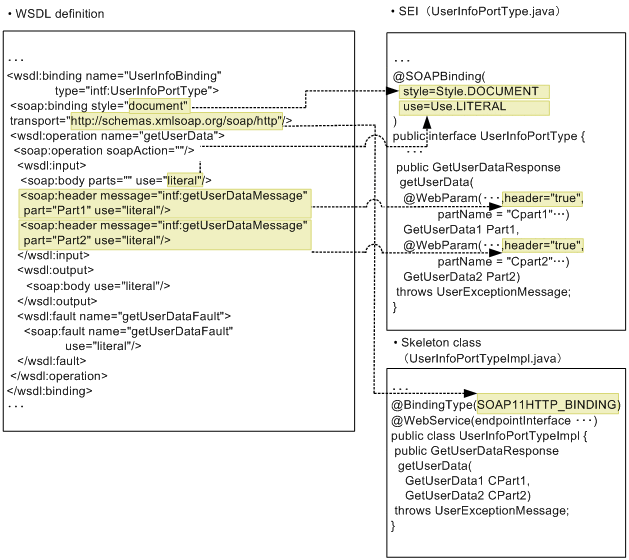

Figure 15-11 Example of mapping the binding extension elements to the parameters

• SOAP binding
  You can code SOAP binding in the binding extension element.


  Note

  When multiple soap:header elements are coded, make sure that the local name of the global element referenced from the message corresponding to each soap:header element is unique. If the local name is the same, an error message is output in the standard error output and log and the processing ends (KDJW51205-E).

  Mapping from the transport attribute value of the soap:binding or soap12:binding elements to the javax.xml.ws.BindingType annotation
  The following table describes the mapping from the transport attribute value of the soap:binding element or the soap12:binding element, which is a child element of the wsdl:binding element of WSDL to the javax.xml.ws.BindingType annotation.


  Table 15-16 Mapping the transport attribute value to javax.xml.ws.BindingType

  Sr.No	SOAP Version	transport attribute value	BindingType annotation value
  1	SOAP 1.1	http://schemas.xmlsoap.org/soap/http	http://schemas.xmlsoap.org/soap/http#1
  2		http://schemas.xmlsoap.org/wsdl/soap/http?mtom=true	--#2
  3	SOAP 1.2	http://schemas.xmlsoap.org/soap/http#3	http://www.w3.org/2003/05/soap/bindings/HTTP/
  4		http://www.w3.org/2003/05/soap/bindings/HTTP/	http://www.w3.org/2003/05/soap/bindings/HTTP/
  5		http://www.w3.org/2003/05/soap/bindings/HTTP/?mtom=true	--#2

  Legend:

  --: None.

  #1

  Being the same value as the default value, in reality, the javax.xml.ws.BindingType annotation is omitted.

  #2

  Error occurs when the cjwsimport command is executed (KDJW51147-E).

  #3

  Since the general specifications of the transport attribute are ambiguous, you can use the following URL in JAX-WS.



• MIME binding
  MIME binding is not supported.
