When the cjwsimport command is executed, the WSDL fault is mapped to the Java type in accordance with the JAX-WS 2.2 specifications. The following figure shows an example of mapping:

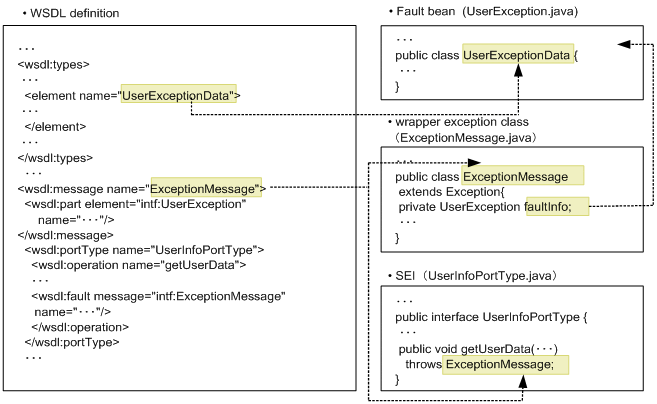

Figure 15-9 Example of mapping the fault to the exception class

• Mapping to the fault bean
  A fault bean is generated in accordance with the JAX-WS 2.2 specifications. The global element declaration referenced from the fault part is mapped to the fault bean.

• Generated wrapper exception class
  The wrapper exception class is generated in accordance with the JAX-WS 2.2 specifications. The generated wrapper exception class inherits the java.lang.Exception class and has the javax.xml.ws.WebFault annotation. The generated wrapper exception class also has the following methods:

  • Constructor of FaultMessageName(String message, FaultBean faultInfo)^#
    This method has the message string and fault bean class as the arguments. Also, the constructor of the parent class javax.xml.ws.WebFault is invoked in this constructor.

  • Constructor of FaultMessageName(String message, FaultBean faultInfo, Throwable cause)^#
    This method has the message string and fault bean class, and protocol-specific exception information as the argument. Also, the constructor of the parent class javax.xml.ws.WebFault is invoked in this constructor.

  • getFaultInfo() method
    This method does not have arguments. The return value is the fault bean class.


  #

  "FaultMessageName" indicates the message name (name attribute of the wsdl:message element) referenced from the fault. Also, the argument "FaultBean" indicates the name of the fault bean class.

In the fault name, you can code a string that fulfills all the conditions described in the following table. However, when customizing with the binding declaration, you can code the strings that can be used as xsd:NCName type of the XML Schema specification.

Table 15-13 Conditions for strings that can be coded in the fault name

No.	Conditions	Examples of invalid strings	Operations when invalid strings are specified
1	Strings using only one-byte alphanumeric characters (0 to 9, A to Z, a to z) and underscore (_)	Hitachi_fault	The operation might not function properly (error message is not displayed).
2	Strings that do not begin with numeric characters	1User_fault	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).

The fault can reference messages with only 1 part coded. The following table describes the number of parts of the messages referenced from the fault and the operations:

Table 15-14 Number of parts of the messages referenced from the fault and the operations

No.	Number of coding	Operations
1	0	An error message is output in the standard error output and log and the processing ends (KDJW51025-E).
2	1	Terminates normally.
3	2 or more	An error message is output in the standard error output and log and the processing continues (KDJW51025-E).

When many different operation faults reference the same message, all the faults are handled as the same fault. Therefore, when mapping to Java, a common wrapper exception class is assumed. The following figure shows an example:

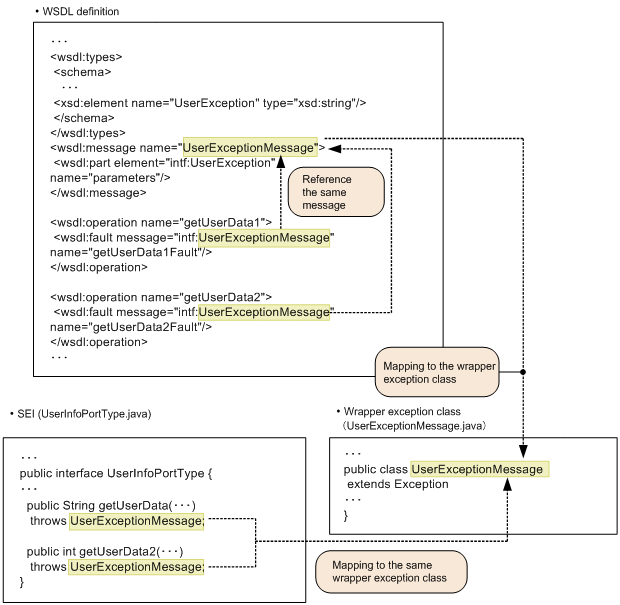

Figure 15-10 Example of mapping when the same operation fault references the same message

The following table describes the relationship between the operation coding the fault and the messages referenced from the fault:

Table 15-15 Relationship between the operation coding the fault and the referenced messages

No.	Operation coding the fault	Messages referenced from the fault	Handling of the fault
1	Different	Same	Handled as the same fault.
2		Different	Handled as a different fault.
3	Same	Same	An error message is output in the standard error output and log and the processing ends (KDJW51026-E).
4		Different	Handled as a different fault.
