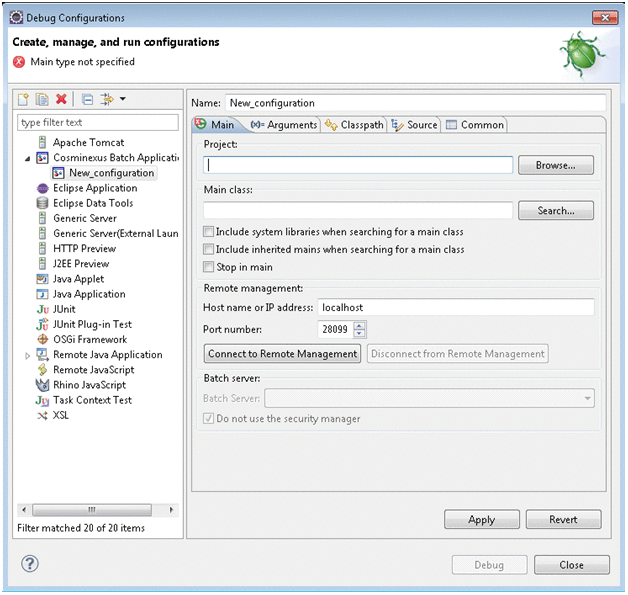

In the Main tab of the Debug Configurations dialog box, specify the batch application main class required for debugging, the executed batch server, and the connection to the Management Server remote management required for specifying the batch server.

Specify the following items in the Main tab:

Item name	Specified value
Name	Specify the name of the start configuration.
Project	Specify the Java project that has developed the batch application to be debugged.
Main class	Specify the main class of the batch application to be debugged.
Host name or IP address#1	Specify localhost as the host name to which the Management Server remote management will connect.
Port number #1	Specify the port number to which the Management Server remote management will connect.
Connect to Remote Management	Connect to Remote Management. This enables you to specify#2 the batch server. If the management user authentication in the Management Server Management User settings is specified as Authenticate, the Log in - Remote Management dialog box appears.
Batch server#3	Select the server for executing the batch application.

#1

You cannot store the connection information for Remote Management for each start configuration. If there are multiple batch application start configurations, the settings of the Remote Management functionality group are shared. Therefore, if you change the connection information for one start configuration, the connection information for the other start configurations also changes.

Also, even if you delete all the batch application start configurations, the settings of Remote Management will remain.

Also, if Host name or IP address is not specified, you cannot connect to Remote Management.

#2

You can store the selected batch server for each start configuration.

#3

After switching the host connected to Remote Management and destroying the batch server using the management portal, if you click the Connect to the Remote Management functionality button to connect to Remote Management, and if the previously selected batch server does not exist in the Batch Server combo box, the batch server not selected by the user will be selected in the Batch Server combo box. In this case, select and save an appropriate batch server in the Batch Server combo box once again.

The Batch Server combo box also displays the batch servers that are only added but not set up with the management portal. If you select a batch server that is not set up, the batch applications cannot be executed, and therefore, a Management Server error occurs.

As and when required, specify the following items:

Item name	Specified value
Include system library, when searching for a main class	Select this item to include the system library in the scope of search, when you click the Search button in Main class to search the main class.
Include inherited mains, when searching for a main class	Select this item to include the class that inherited the main class in the scope of search, when you click the Search button in Main class to search the main class.
Stopping in main	Select this item to automatically interrupt with main, even if the breakpoint is not set up in the main method during the debugging process.
Disconnecting from Remote Management	Remote Management will be disconnected. When disconnected, you cannot select the batch server. If the management user authentication in the Management Server Management User settings is specified as Authenticate, the Log in - Remote Management dialog box appears.
Do not use the security manager	Specifies whether to use Security Manager for starting the batch server: When Security Manager is used Do not select Do not use the security manager. When Security Manager is not used Select Do not use the security manager.

Note

The settings of the Remote Management group are only applied when you click the Connect to the Remote Management button. If you change other fields and click the Apply button when the button is activated, the settings of the Remote Management group are not applied. Consequently, if you click the Revert button when the button is activated, the settings of the Remote Management group do not return.

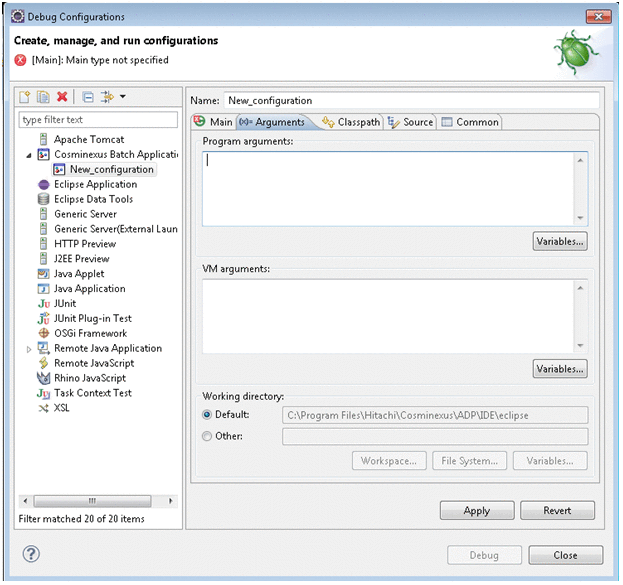

Specify startup arguments for the batch applications to be debugged and the Java VM startup options in the Argument tab of the Debug Configurations dialog box.

Specify the following items in the Argument tab:

Item name	Specified value
Program arguments	Specify the arguments for starting the batch applications.
VM arguments	Specify the Java VM startup options and the system properties for executing the batch applications.
Working directory	Specify the folder for executing the batch applications.

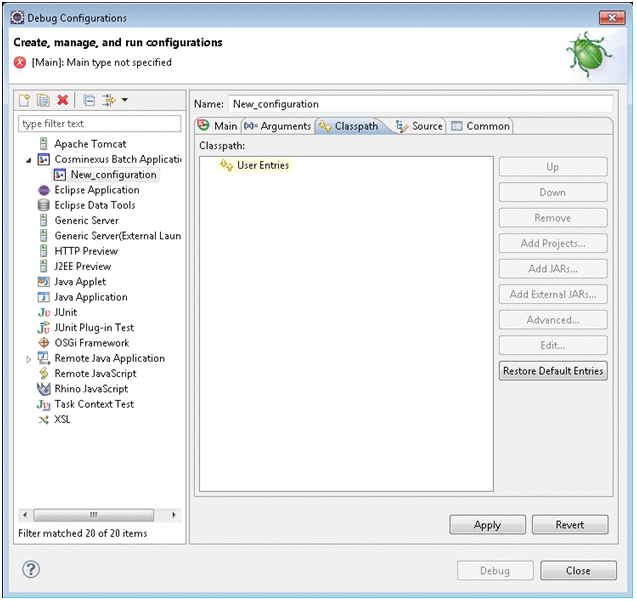

Specify the class path of the batch applications to be debugged in the Classpath tab of the Debug Configurations dialog box. Normally, you need not specify the class path if you set up the library required for the project build path beforehand. If there is a class path that is referenced at runtime, add that class path.

Specify the following items in the Classpath tab:

Item name	Specified value
Classpath	Specify the class path to be referenced, when the batch application is executed.

Specify the path for searching the source of the interruption location, when the debugging process is interrupted, in the Source tab of the Debug Configurations dialog box. Normally, the source exists in the project, so the path need not be specified, but when an external library is used, specify the path where the source code of that library exists.

In the Common tab of the Debug Configurations dialog box, specify all the options that can be commonly set up for the start configurations, such as the options for storage of the start configuration files, display on the start configuration menu bar, and for output of the files used for start configuration console output.
