The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8-160 Details of trace collection points when Message-driven Bean is deployed from the CJMSP resource adapter

Event ID	Number in the figure#	Trace collection point	Level
0xA6A6	1	When the processing of ResourceAdapter.endpointActivation(endpointFactory,spec) starts	A
0xA6A7	2	When the processing of ResourceAdapter.endpointActivation(endpointFactory,spec) ends	A
0xA6A8	3	When the processing of ResourceAdapter.endpointDeactivation(endpointFactory,spec) starts	A
0xA6A9	4	When the processing of ResourceAdapter.endpointDeactivation(endpointFactory,spec) ends	A
0xA6AA	5	When the processing of MessageListener.onMessage() starts	A
0xA6AB	6	When the processing of MessageListener.onMessage() ends	A

Legend:

A: Standard

#:

Corresponds to the numbers in Figure 8-100.

Note

• 0xA67E and 0xA67F are output when you invoke endpointDeactivation().
• 0xA67C are 0xA67D are output when you invoke endpointActivation().

The following figure shows the trace collection points when Message-driven Bean is deployed from the CJMSP resource adapter.

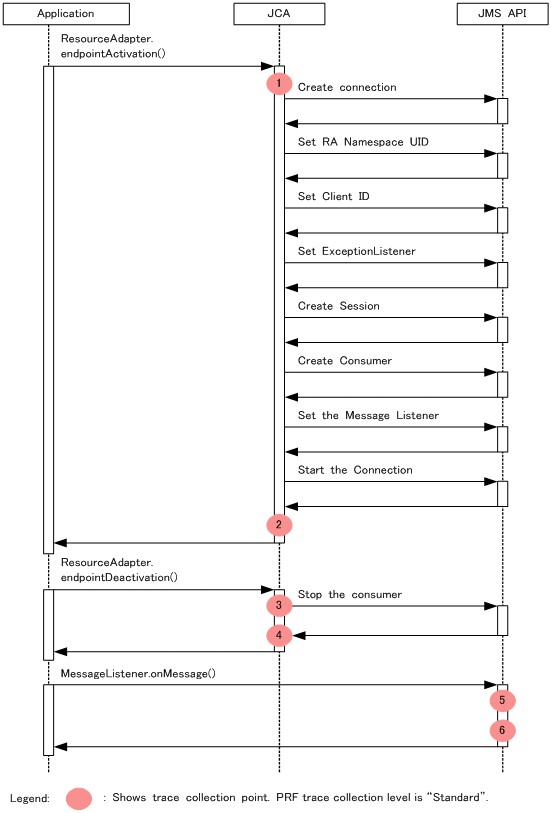

Figure 8-100 Trace collection points when Message-driven Bean is deployed from the CJMSP resource adapter

Trace information (interface name, operation name, and option) cannot be collected when Message-driven Bean is deployed from the CJMSP resource adapter.
