uCosminexus Application Server, Maintenance and Migration Guide
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-113 Details of trace collection points in the batch application execution functionality
Event ID | Number in the figure#1 | Trace acquisition point | Level |
---|---|---|---|
0x8E05 | 1#2 | Just after receiving the batch application execution request | A |
0xA100 | 2 | Immediately before the execution of the batch application | A |
0xA101 | 3 | Immediately after the termination of the batch application | A |
0x8E06 | 4#2 | Immediately before sending the termination results of the batch application | A |
The following figure shows the trace collection points in the batch application execution functionality.

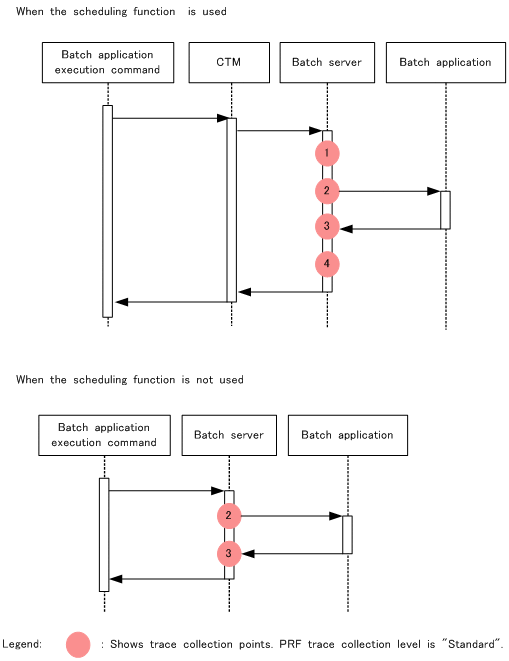

Figure 8-70 Trace collection points in the batch application execution functionality
