The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8-111 Details of trace collection points in a DI

Event ID	No. in the figure#	Trace acquisition points	Level
0x9D00	1	Immediately before injecting the dependency	A
0x9D01	2	Immediately after injecting the dependency	A

Legend:

A: Standard

#

Corresponds to the numbers in Figure 8-69.

The following figure shows the trace collection points in a DI.

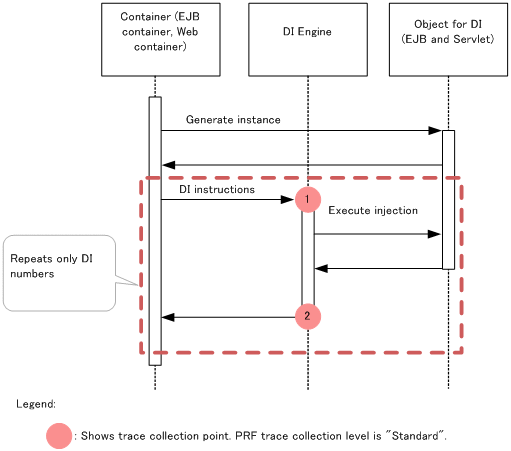

Figure 8-69 Trace collection points of a DI
