The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-103 Details of trace collection points in an RMI
Event ID | No. in the figure# | Trace acquisition points | Level |
---|---|---|---|
0x8E01 | 1 | When the process for sending a request with the stub starts | A |
0x8E02 | 6 | When the process for receiving a response with the stub is complete | A |
0x8E03 | 2 | During the processing for sending the request at the client side | A |
0x8E04 | 5 | During the processing for receiving the response at the client side | A |
0x8E05 | 3 | During the processing for receiving the request at the server side | A |
0x8E06 | 4 | During the processing for sending the response at the server side | A |

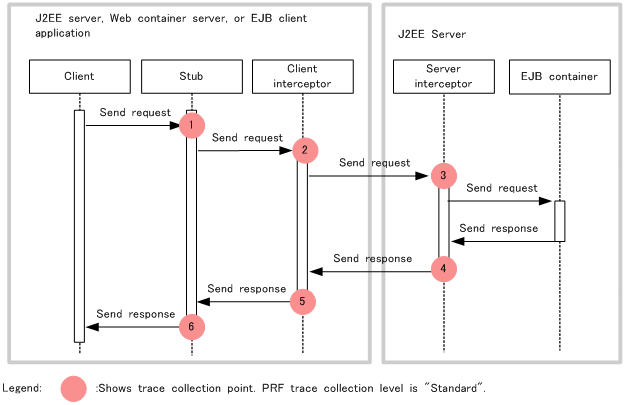

The following figure shows the trace collection points in an RMI.
Figure 8-60 Trace collection points of an RMI
