The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8-82 Details of trace collection points in the case of a transaction timeout

Event ID	No. in the figure#	Trace acquisition points	Level
0x8819	1	Immediately before the transaction timeout processing	A
0x8C41	2	SQL output for failure checking	A
0x8820	3	Immediately after the transaction timeout processing	A

Legend:

A: Standard

#

Corresponds to the numbers in Figure 8-49.

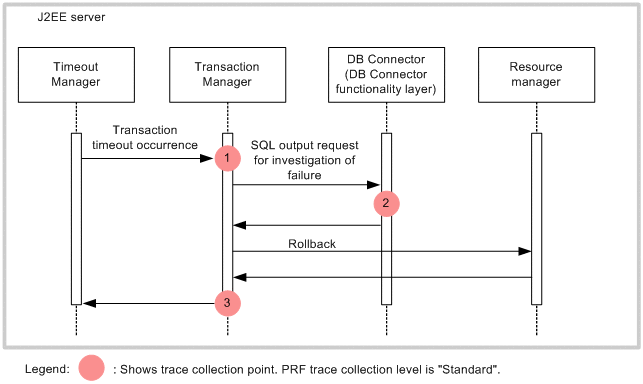

The following figure shows the trace collection points in the case of a transaction timeout.

Figure 8-49 Trace collection points in the case of a transaction timeout

The following table describes the trace information that can be collected in the case of a transaction timeout.

Table 8-83 Trace information that can be collected in the case of a transaction timeout

No. in the figure#	Event ID	Level	Information that you can acquire
			Interface name	Operation name	Optional
1	0x8819	A	Root application information of the transaction that has timed out	--	--
2	0x8C41	A	Root application information of the connection for which a transaction timeout, forced termination of the J2EE application, or method cancellation was executed	--	SQL statement
3	0x8820	A	--	--	Entrance time

Legend:

A: Standard

--: Not applicable

#

Corresponds to the numbers in Figure 8-49.
