uCosminexus Application Server, Maintenance and Migration Guide
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-76 Details of trace collection points in a JNDI
Event ID | No. in the figure# | Trace acquisition points | Level | ||
---|---|---|---|---|---|
0x8603 | 1 | When searching the name space in JNDI, or the CORBA Naming Service | javax.naming.Context.lookup | Immediately after invocation | A |
0x8604 | 2 | Immediately before return | A | ||
0x8605 | 1 | javax.naming.Context.list | Immediately after invocation | B | |
0x8606 | 2 | Immediately before return | B | ||
0x8607 | 1 | javax.naming.Context.listBindings | Immediately after invocation | B | |
0x8608 | 2 | Immediately before return | B | ||
0x8609 | 1 | When searching the name space in which javax.ejb.EJBLocalHome is saved | javax.naming.Context.lookup | Immediately after invocation | A |
0x860A | 2 | Immediately before return | A | ||
0x860B | 1 | javax.naming.Context.list | Immediately after invocation | B | |
0x860C | 2 | Immediately before return | B | ||
0x860D | 1 | javax.naming.Context.listBindings | Immediately after invocation | B | |
0x860E | 2 | Immediately before return | B | ||
0x860F | 1 | When searching the java: name space | javax.naming.Context.lookup | Immediately after invocation | A |
0x8610 | 2 | Immediately before return | A | ||
0x8611 | 1 | javax.naming.Context.list | Immediately after invocation | B | |
0x8612 | 2 | Immediately before return | B | ||
0x8613 | 1 | javax.naming.Context.listBindings | Immediately after invocation | B | |
0x8614 | 2 | Immediately before return | B | ||
0x8615 | 1 | When using the round-robin search functionality | javax.naming.Context.lookup | Immediately after invocation | A |
0x8616 | 2 | Immediately before return | A | ||
0x8617 | 1 | When using the CORBA Naming Service switch functionality | javax.naming.Context.lookup | Immediately after invocation | A |
0x8618 | 2 | Immediately before return | A | ||
0x8619 | 1 | javax.naming.Context.list | Immediately after invocation | B | |
0x861A | 2 | Immediately before return | B | ||
0x861B | 1 | javax.naming.Context.listBindings | Immediately after invocation | B | |
0x861C | 2 | Immediately before return | B |

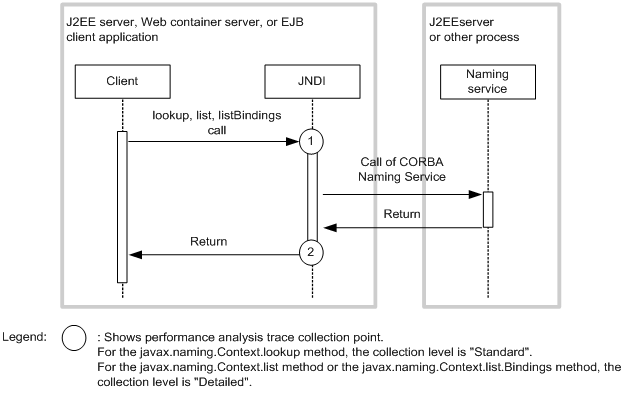

The following figure shows the trace collection points in a JNDI.
Figure 8-45 Trace collection points of a JNDI
