This subsection describes the trace collection points when method cancellation occurs, and also describes the trace information that can be collected.
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-74 Details of the trace collection points when method cancellation occurs
Event ID | No. in the figure# | Trace collection points | Level |
---|---|---|---|
0x8490 | 1 | When the method cancellation processing starts | A |
0x8C41 | 2 | When an SQL statement is output to check errors | A |
0x8491 | 3 | When the method cancellation processing is completed | A |

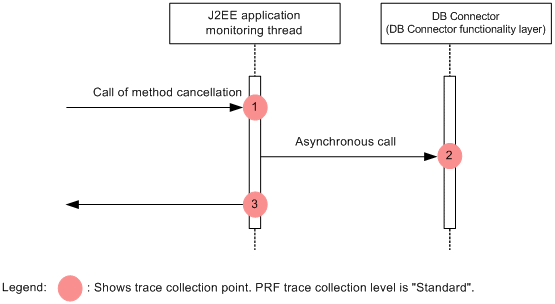

The following figure shows the trace collection points when method cancellation occurs.
Figure 8-44 Trace collection points when method cancellation occurs
The following table describes the trace information that can be collected when method cancellation occurs.
Table 8-75 Trace information that can be collected when method cancellation occurs
No. in the figure# | Event ID | Level | Information that you can acquire | ||
---|---|---|---|---|---|
Interface name | Operation name | Optional | |||
1 | 0x8490 | A | Root application information of the application for which method cancellation is to be executed | -- | -- |
2 | 0x8C41 | A | Root application information of the connection for which a transaction timeout, forced termination of the J2EE application, or method cancellation was executed | -- | SQL statement |
3 | 0x8491 | A | -- | -- | Entrance-time |
