This subsection describes the trace collection points and trace information that can be collected when an EADs client is invoked.
The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-32 Details of the trace collection points when an EADs client is invoked (EADs session failover functionality)
Event ID | No. in the figure# | Trace collection points | Level |
---|---|---|---|
0x8233 | 1 | Immediately before the EADs session failover functionality invokes an EADs client | A |
0x8333 | 2 | Immediately after the EADs session failover functionality invokes an EADs client | A |
The following figure shows the trace collection points.

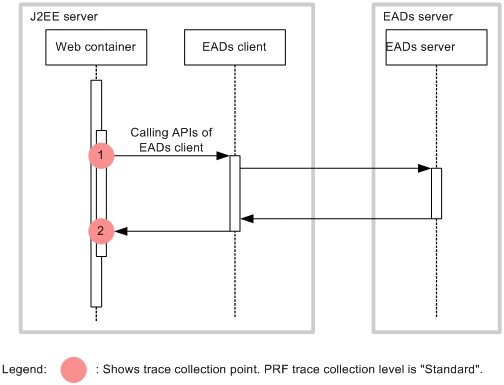

Figure 8-22 Trace collection points when an EADs client is invoked (EADs session failover functionality)
The following table describes the trace information that can be collected when an EADs client is invoked.
Table 8-33 Trace information that can be collected when an EADs client is invoked (EADs session failover functionality)
No. in the figure# | Event ID | Level | Information that can be collected | ||
---|---|---|---|---|---|
Interface name | Operation name | Option | |||
1 | 0x8233 | A | Class name of the invoked EADs client | Method name of the invoked EADs client | Method-argument-of-invoked-EADs-client |
2 | 0x8333 | A | -- | -- |
|
