The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8-24 Details of trace collection points of the request processing for disabling an HTTP session through valid period monitoring (database session failover functionality)

Event ID	No. in the figure#	Trace acquisition points	Level
0x8210	3	After session timeout	B
0x8225	1	Immediately before starting the valid period monitoring process of the global session information on the database	A
0x8325	2	Immediately after the termination of the valid period monitoring process of the global session information on the database	A

Legend:

A: Standard

B: Advanced

#

Corresponds to the numbers in Figure 8-18.

The following figure shows the trace collection points.

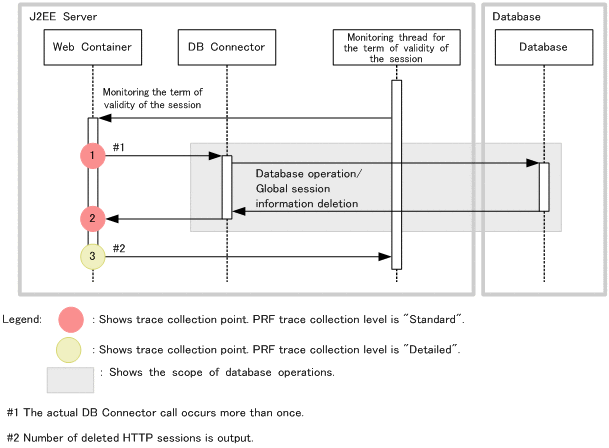

Figure 8-18 Trace collection points of the request processing for disabling an HTTP session through valid period monitoring (database session failover functionality)

The following table describes the trace information that can be collected during request processing for disabling an HTTP session through valid period monitoring.

Table 8-25 Trace information that can be collected during request processing for disabling an HTTP session through valid period monitoring (database session failover functionality)

No. in the figure#1	Event ID	Level	Information that you can acquire
			Interface name	Operation name	Optional
1	0x8225#2	A	--	--	--
2	0x8325#2	A	When the valid period checking of the global session information is executed Number of disabled global sessions When the valid period checking of the global session information is not executed Name (IP address) of the J2EE server that currently manages the valid period checking	--	When normal: Entrance-time For an exception: Entrance-time exception-name
3	0x8210	B	Context root name	Session valid period: session generation time	Number-of-session-ID-characters: session-ID

Legend:

A: Standard

B: Advanced

--: Not applicable

#1

Corresponds to the numbers in Figure 8-18.

#2

Not output when the integrity protection mode is disabled.
