Trace collection points and trace information that can be collected during request processing for updating an HTTP session (Trace of database session failover functionality)

The following table describes the event IDs, trace collection points, and PRF trace collection levels.

Table 8-20 Details of trace collection points of the request processing for updating an HTTP session (database session failover functionality)

Event ID	No. in the figure^#1	Trace acquisition points	Level
0x8200	1	Immediately after the acquisition of a request, or after the completion of the request header analysis (via the Web server)	A/B
0x8202	6	Immediately before invoking a servlet or JSP	A/B
0x8203	6	Immediately before invoking the filter that is executed before the execution of the servlet or JSP that receives the request (filter for which the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml is omitted, or for which REQUEST is specified in the [[dispatcher]] tag)	B
0x8207	6	Immediately before invoking the static contents (DefaultServlet)	B
0x8211	1	Immediately after the acquisition of a request, or after the completion of the request header analysis (via the in-process HTTP server)	A/B
0x8219^#2	8	Immediately before starting the serialization of the HTTP session property information with the database session failover functionality	A
0x8220	4	Immediately before starting the de-serialization of the HTTP session property information with the database session failover functionality	A
0x8221	2	Immediately before starting database access before the Web application processing with the database session failover functionality	A
0x8222^#2	10	Immediately before starting database access after the Web application processing with the database session failover functionality	A
0x8300	12	Immediately after the completion of request processing (via the Web server)	A/B
0x8302	7	Immediately after the completion of processing of the servlet or JSP	A/B
0x8303	7	Immediately after the completion of processing of the filter that is executed before the execution of the servlet or JSP that receives the request (filter for which REQUEST is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml)	B
0x8307	7	Immediately after the completion of processing of the static contents (DefaultServlet)	B
0x8311	12	Immediately after the completion of request processing (via the in-process HTTP server)	A/B
0x8316	7	Immediately after the completion of processing of the filter executed during transfer to the error page is complete (filter for which ERROR is specified in the [[dispatcher]] tag of the [[filter-mapping]] tag of web.xml)	B
0x8319^#2	9	Immediately after the termination of serialization of the HTTP session property information with the database session failover functionality	A
0x8320	5	Immediately after the termination of de-serialization of the HTTP session property information with the database session failover functionality	A
0x8321	3	Immediately after the termination of database access before the Web application processing with the database session failover functionality	A
0x8322^#2	11	Immediately after the termination of database access after the Web application processing with the database session failover functionality	A

Legend:: A: Standard; B: Advanced; A/B: Different information is collected for the Standard and Advanced levels.

#1: Corresponds to the numbers in Figure 8-16.

#2: Not output for requests meant for referencing the HTTP session.

The following figure shows the trace collection points.

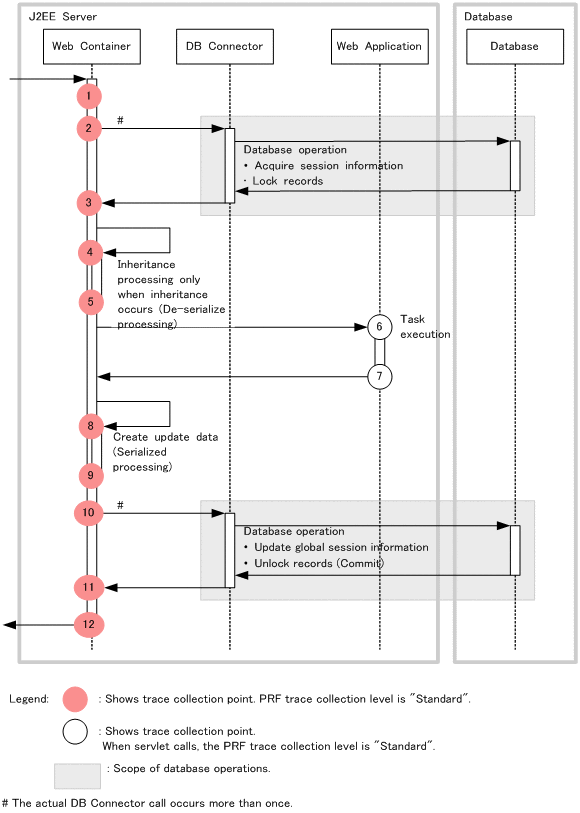

Figure 8-16 Trace collection points of the request processing for updating an HTTP session (database session failover functionality)

[Figure]

The following table describes the trace information that can be collected during request processing for updating an HTTP session.

Table 8-21 Trace information that can be collected during request processing for creating an HTTP session (database session failover functionality)

No. in the figure^#	Event ID	Level	Information that you can acquire
No. in the figure^#	Event ID	Level	Interface name	Operation name	Optional
1	0x8200	A	HTTP method	URI	--
	0x8200	B	HTTP method	URI	Number-of-session-ID-characters: session ID: collection-method
	0x8211	A	HTTP method	URI	-
	0x8211	B	HTTP method	URI	Number-of-session-ID-characters: session ID: collection-method
2	0x8221	A	--	--	Number-of-session-ID-characters: session-ID-received-with-the-request
3	0x8321	A	When integrity protection mode is set Number of the record for which exclusion is acquired When integrity protection mode is disabled -1	--	When normal: Entrance-time For an exception: Entrance-time exception-name
4	0x8220	A	Request URL	Size (bytes) of the HTTP session property information before de-serialization	Number-of-session-ID-characters: session-ID
5	0x8320	A	Request URL	--	When normal: Entrance-time For an exception: Entrance-time exception-name
6	0x8202	A	Class name (JSP file name when a JSP is invoked)	--	--
	0x8202	B	Class name (JSP file name when a JSP is invoked)	Context root name	Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID
	0x8207	B	--	Context root name	Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID
	0x8203	B	Class name	Context root name	Number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID
7	0x8302	A	Class name (JSP file name when a JSP is invoked)	--	When normal: Entrance-time For an exception: Entrance-time exception-name
	0x8302	B	Class name (JSP file name when a JSP is invoked)	Context root name	When normal: Entrance-time number-of-session-ID-characters: session-ID For an exception: Entrance-time exception-name: number-of-session-ID-characters: session-ID
	0x8307	B	--	Context root name	When normal: Entrance-time number-of-session-ID-characters: session-ID For an exception: Entrance-time exception-name: number-of-session-ID-characters: session-ID
	0x8303	B	Class name	Context root name	When normal: Entrance-time number-of-session-ID-characters: session-ID For an exception: Entrance-time exception-name: number-of-session-ID-characters: session-ID
	0x8316	B	Class name	Context root name	When normal: Entrance-time number-of-session-ID-characters: session-ID For an exception: Entrance-time exception-name: number-of-session-ID-characters: session-ID
8	0x8219	A	Request URL	--	Number-of-session-ID-characters: session-ID
9	0x8319	A	Request URL	Size (bytes) of the HTTP session property information after serialization	When normal: Entrance-time For an exception: Entrance-time exception-name
10	0x8222	A	--	--	Number-of-session-ID-characters: session-ID-of-HTTP-session
11	0x8322	A	When integrity protection mode is set Number of the record for which exclusion is released When integrity protection mode is disabled -1	--	When normal: Entrance-time For an exception: Entrance-time exception-name
12	0x8300	A	HTTP method	URI	When normal: Entrance-time status-code For an exception: Entrance-time status-code exception-name
	0x8300	B	HTTP method	URI	When normal: Entrance-time status-code number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID For an exception: Entrance-time status-code exception-name: number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID
	0x8311	A	HTTP method	URI	Entrance-time-status-code
	0x8311	B	HTTP method	URI	Entrance-time status-code number-of-session-ID-characters: session-ID: number-of-global-session-ID-characters: global-session-ID

Legend:: A: Standard; B: Advanced; --: Not applicable

#: Corresponds to the numbers in Figure 8-16.
