The following table describes the event IDs, trace collection points, and PRF trace collection levels.
Table 8-4 Details of trace collection points in a CTM
Event ID | No. in the figures# | Trace acquisition points | Level |
---|---|---|---|
0x1101 | 21 | Immediately before sending a request from the OTM gateway | A |
0x1102 | 22 | Immediately before receiving a response from the OTM gateway | A |
0x1301 | 4 | Immediately before sending a request from the EJB regulator | A |
0x1302 | 13 | Immediately after receiving a response in the EJB regulator | A |
0x1401 | 1 | Entrance of the Create method in the CTM | A |
0x1402 | 2 | Exit of the Create method in the CTM | A |
0x1403 | 5 | Immediately after receiving a request from the EJB regulator | A |
0x1404 | 8 | Immediately before sending a request from the CTM to the J2EE server or batch server | A |
0x1405 | 9 | Immediately after receiving a request from the J2EE server or batch server in the CTM | A |
0x1406 | 12 | Immediately before sending a response from the CTM to the EJB regulator | A |
0x2002 | 23 | Immediately before receiving a request from the OTM client | A |
0x2003 | 24 | Immediately before receiving a response from the OTM client | A |
0x2101 | 3 | Immediately after receiving a request from the EJB client or cjexecjob command | A |
0x2102 | 14 | Immediately before sending a response to the EJB client or cjexecjob command | A |
0x2103 | 15 | Entrance of the Remove method in the CTM | A |
0x2104 | 16 | Exit of the Remove method in the CTM | A |
0x3000 | 6 | Immediately before queue of the request | A |
0x3001 | 7 | Immediately after extracting a request from the queue | A |
0x3002 | 17 | Immediately before sending a request to another CTM | A |
0x3003 | 18 | Immediately after receiving a request from another CTM | A |
0x3004 | 10 | Immediately before queue of the request response | B |
0x3005 | 11 | Immediately after extracting the request response from the queue | B |
0x3006 | 19 | Immediately before sending a request response to another CTM | A |
0x3007 | 20 | Immediately after receiving a request response from another CTM | A |
0x3008 | -- | Collected when the server status changes. (Not collected when a request is being processed) | B |

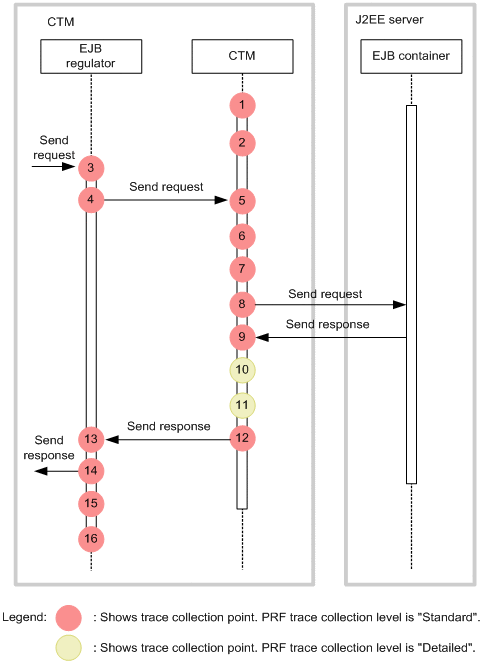

The following figure shows the trace collection points in a CTM.

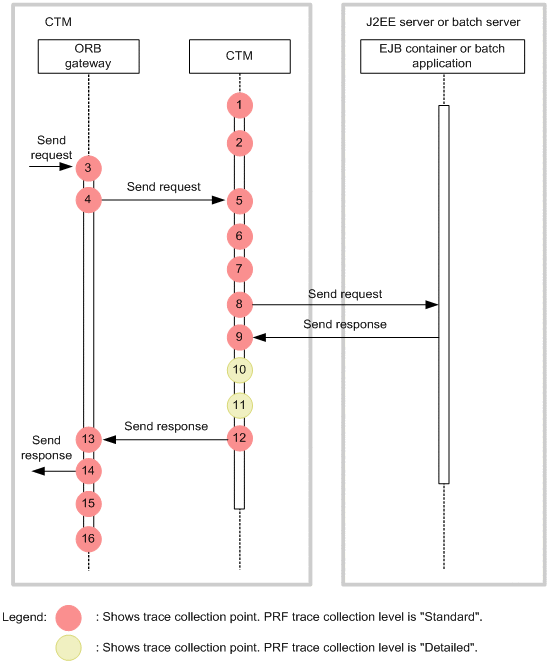

Figure 8-5 Trace collection points of a CTM
For linkage with another CTM, the trace information is also collected at the locations shown in the following figure. The figure might be referenced in connection with the above figure. Note that this figure displays only the locations that are linked with another CTM.

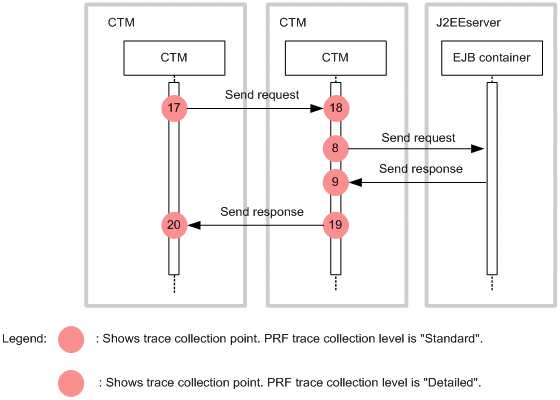

Figure 8-6 Trace collection points of a CTM (For linkage with another CTM)
Furthermore, when using the OTM gateway or ORB gateway, the trace information is also collected at the locations shown in the following figure. The figure might be referenced in connection with the above figure. Note that this figure displays only the locations that are linked with another CTM.

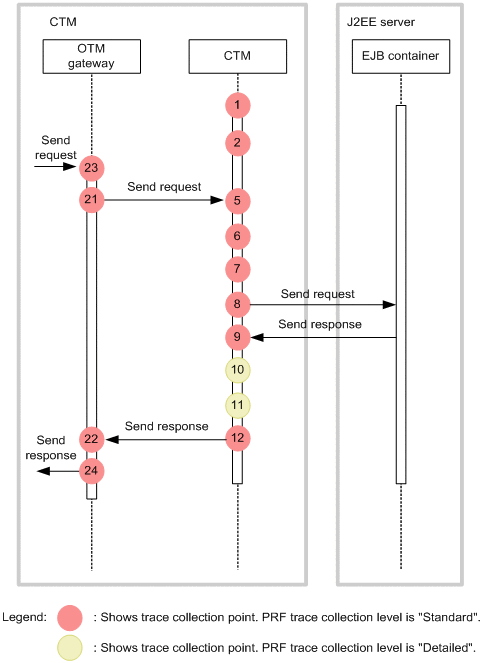

Figure 8-7 Trace collection points of a CTM (when using the OTM gateway)
Figure 8-8 Trace collection points of a CTM (when using the ORB gateway)
