The trace based performance analysis functionality uses the performance analysis information output by the Application Server functionality and the application processing to analyze the performance of Application Server and application processing.

The trace based performance analysis functionality includes the following types based on the performance analysis information to be used:

• Trace based performance analysis of Application Server
• Trace based performance analysis of applications

Note that in both the cases you use the component software Cosminexus Performance Tracer to analyze the processing performance.

The following figure gives an overview of the trace based performance analysis.

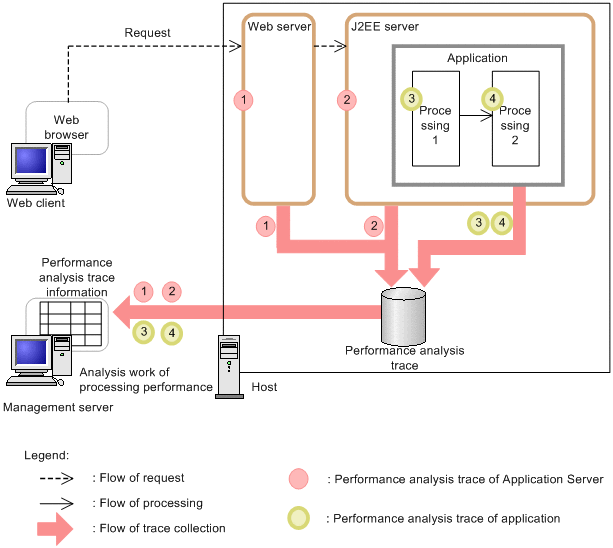

Figure 7-1 Overview of the trace based performance analysis

Points 1 and 2 in the figure indicate the trace based performance analysis of Application Server, and points 3 and 4 indicate the trace based performance analysis of applications. You can collectively analyze both the trace based performance analysis as the trace based performance analysis information.

Organization of this section

7.2.1 Overview of the trace based performance analysis of Application Server

7.2.2 Overview of the trace based performance analysis of applications
