uCosminexus Application Server, Operation, Monitoring, and Linkage Guide
The records of resource depletion monitoring information are output in CSV format files.
The following figure shows the output format:

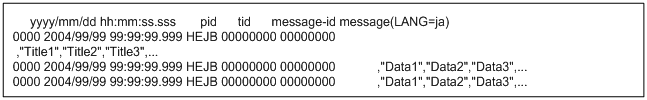

Figure 4-1 Output format of resource depletion monitoring information
The output format is described below:
The file output contents depend on the values set in usrconf.properties, application attributes, or resource adapter attributes.
The output information for each is described in the following sections.
The following table describes the information output in monitoring information of memory depletion:
Table 4-6 Contents output in monitoring information for memory depletion
Character string of output title | Output contents |
---|---|
Rate1 | Memory usage of the Old area is output. The unit is %. The memory usage of the Old area is calculated using the following formula:
|
Rate2 | Total memory usage of the New area is output for maximum free memory in the Old area. The unit is %. Total memory usage of the New area for the maximum free memory in the Old area is calculated using the following formula:
|
Rate3 | Memory usage of the Permanent area is output. The unit is %. The memory usage of the Permanent area is calculated using the following formula:
|
Free [New] | The free memory size of the New area is output. The unit is bytes. |
Total [New] | The total memory size of the New area is output. The unit is bytes. |
Max [New] | The maximum memory size of the New area is output. The unit is bytes. |
Free [Old] | The free memory size of the Old area is output. The unit is bytes. |
Total [Old] | The total memory size of the Old area is output. The unit is bytes. |
Max [Old] | The maximum memory size of the Old area is output. The unit is bytes. |
Free [Permanent] | The free memory size of the Permanent area is output. The unit is bytes. |
Total [Permanent] | The total memory size of the Permanent area is output. The unit is bytes. |
Max [Permanent] | The maximum memory size of the Permanent area is output. The unit is bytes. |
Threshold | Threshold value is output. The unit is %. |
The following table describes the information output in the result of monitoring file descriptors information. You cannot monitor the number of file descriptors in Windows or AIX.
Table 4-7 Contents output in the monitoring information for depletion of file descriptors
Character string of output title | Output contents |
---|---|
Current | The number of file descriptors used by J2EE server processes is output. |
Max | The number of file descriptors that can be allocated to a process is output. For Solaris, normally "-" is output. |
Threshold | Threshold value is output. |
The following table describes the information output in monitoring information of thread depletion:
Table 4-8 Contents output in the monitoring information for thread depletion
Character string of output title | Output contents |
---|---|
Current | The number of threads using self-process is output. |
Max |
|
Threshold | Threshold value is output. |
The following table describes the information output in the monitoring information of depletion of thread dump:
Table 4-9 Contents output in the monitoring information for thread dump depletion
Character string of output title | Output contents |
---|---|
Rate | The percentage of number of files of the current thread dump corresponding to its maximum value is output. The unit is %. |
Current | The current value of the number of thread dump files is output. |
Max | The upper limit of the number of thread dump files is output. |
Threshold | Threshold value is output. The unit is %. |
The queue of HTTP requests pending execution is the pending queue for Web applications and the default pending queue corresponding to the concurrently executing threads of the Web application.
The following table describes the information output in the monitoring information depletion of queue of HTTP request pending execution. This depletion monitoring information includes the following two types of information:
Table 4-10 Contents output in the monitoring information for depletion of HTTP requests pending queue
Character string of output title | Output contents |
---|---|
J2eeApplicationName | The J2EE application name is output. For monitoring results of default queue of requests pending execution, "-" is output. |
ContextRootName | Context root name is output. For monitoring results of default queue of requests pending execution, "-" is output. |
Rate | The percentage of the number of currently stored queues corresponding to its maximum value is output. The unit is %. |
Current | The current value of the number of stored queues is output. |
Max | The maximum value of the number of requests stored in the pending queue for Web applications and the default pending queue is output. |
Threshold | Threshold value is output. The unit is %. |
The following table describes the information output in monitoring information of the number of depleted sessions:
Table 4-11 Contents output in the monitoring information for depletion of the number of sessions
Character string of output title | Output contents |
---|---|
J2eeApplicationName | The J2EE application name is output. |
ContextRootName | Context root name is output. |
Rate | The percentage of the number of current sessions created corresponding to its maximum value is output. The unit is %. If the maximum value is not set, "-" is output. |
Current | The current value of the number of sessions is output. |
Max | The maximum value of the number of sessions is output. If the maximum value is not set, "-" is output. |
Threshold | Threshold value is output. The unit is %. |
The following table describes the information output in monitoring information of depletion of a connection pool:
Table 4-12 Contents output in the monitoring information for connection pool depletion
Character string of output title | Output contents |
---|---|
ResourceName | The resource adapter name given by the user is output in the following format:
|
Rate | The usage of a connection pool is output. The unit is %. If the maximum value of the number of connections is infinite, "-" is output. |
Active | The number of connections in use is output. |
Free | The number of unused connections is output. |
Current | The current value of the number of connections is output. # |
Min | The minimum value of the number of connections is output. |
Max | The maximum value of the number of connections is output. If a connection pool is infinite, "-1" is output. |
Threshold | Threshold value is output. The unit is %. |
All | The total number of connections (total number of connections managed in connection pool and not managed in connection pool) is output. # |
