Check that the JDK provided with the Developer is set up as the JDK to be used with Eclipse.

Double-click the short cut of Eclipse on the Desktop to start Eclipse, and then proceed with the subsequent operations. Note that, here, the Setting Workspace and Directory window appears.

Operation procedure

1. From the Eclipse menu bar, select Window, and then Preferences.
   The Preferences dialog box will appear.

2. In the left pane, select Java, and then Installed JREs.

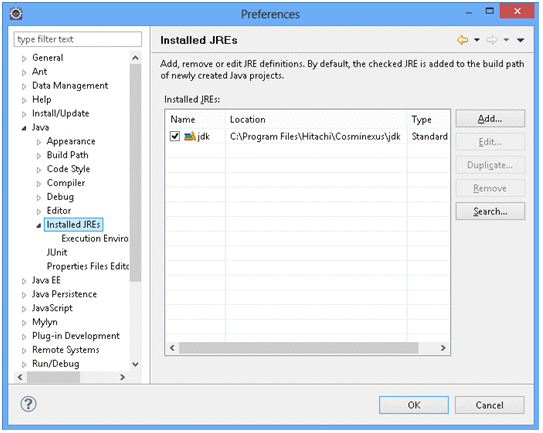

   The Installed JREs page will appear in the right pane.




3. Check if the JDK displayed in the list is the JDK provided with Developer.
   Check if the following path is displayed in Location:


   Developer-installation-directory\jdk

   Take the following action when the path is displayed or when the path is not displayed:

   • When the path is displayed
     Check if the Name check box is selected or not. If the Name check box is not selected, select the checkbox.

   • When the path is not displayed
     Click the Add button, and set up the above path. After setting up the path, select the Name check box.

4. Click the OK button.
   The settings will be saved.


At this stage, the verification of settings of the JDK to be used with Eclipse is completed.
