You use the Eclipse setup functionality to set up the Eclipse environment.

Note

The user must have administrator privileges (administrator privileges mode, if the OS is Windows 7, Windows 8, or Windows Vista), for executing the Eclipse setup functionality.

Operation procedure

1. From the Start menu of Windows, select All Programs, Cosminexus, First Setup, and then Setup Eclipse.

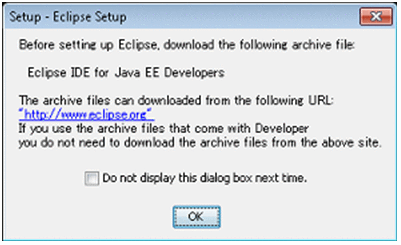

   A dialog box appears for confirming the preparation of the archive file of Eclipse.




2. In the confirmation dialog box, click the OK button.

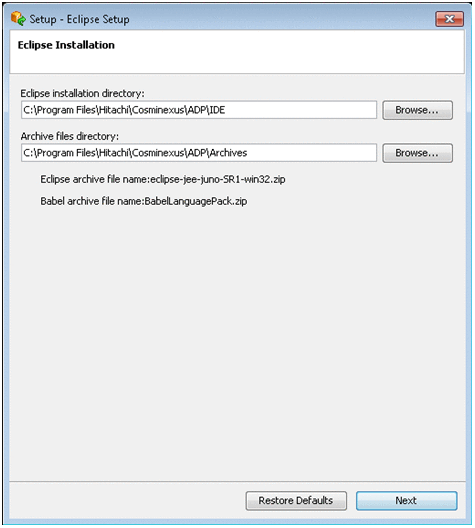

   The Eclipse installation page appears.




3. In the Eclipse installation page, specify the installation and archive directories of Eclipse, and then click the Next button.

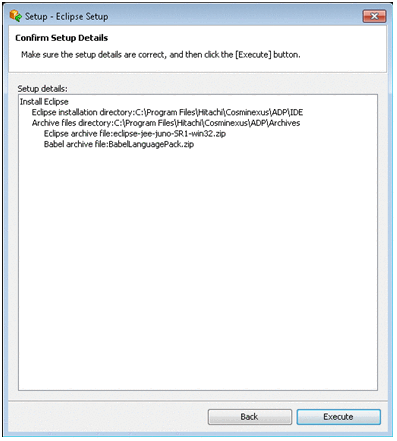

   The Confirm Setup Details page appears.




4. Check the contents of the Confirm Setup Details page, and click the Execute button.

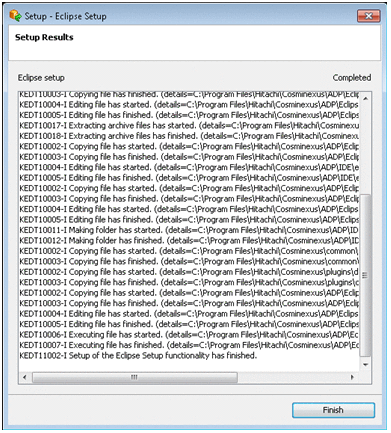

   The Progress Status page appears, and the setup executes. When the setup is completed, the Setup Results page appears.
   The Eclipse setup might take a few minutes to complete.




5. On the setup completion page, click the Finish button.
   The Setup - Eclipse setup dialog box closes, and the setup of Eclipse finishes.
   A short cut of Eclipse is created on the Desktop.


With this, the Eclipse environment setup is completed.
