Use the Development Environment Instant Setup functionality to create the debug environment.

Note

The user must have administrator privileges (administrator privileges mode, if the OS is Windows 7, Windows 8, or Windows Vista), for executing the Development Environment Instant Setup functionality.

Operation procedure

1. From the Start menu, select All Programs, Cosminexus, First Setup, and then Setup Debugging Environment.
   The Select the Type of Setup page of the Setup - Development Environment Instant Setup dialog box appears.

2. Select Standard, and then click the Next button.
   The Setup Embedded Database User page appears.


   Hint

   If you cannot select Standard, this might be due to the following factors:

   • The required file or directory does not exist or the length of the path is exceeding the required limit.
   • The port number specified in the Development Environment Instant Setup functionality is a duplication of the port number being used in the system.

   If a port number is duplicated, select Custom, and then choose a port number that is not duplicated.

   For details, see 2.3.3 Setting contents of the environment to be setup and 2.3.4 Standard setup of the debug environment in the uCosminexus Application Server Application Development Guide.

3. Click the Next button.

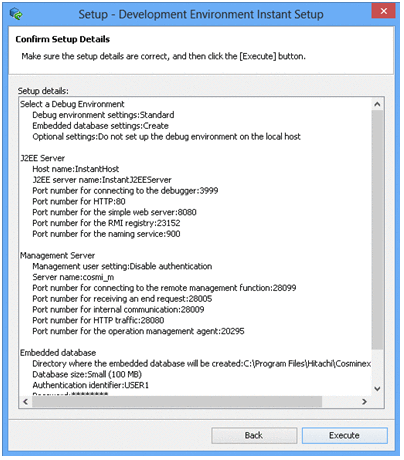

   The Confirm Setup Details page will appear.




   The settings will be displayed in the Setup details area. For details about the settings of the environment created with Standard Setup, see 2.3.3 Settings for the environment to be set up in the uCosminexus Application Server Application Development Guide.
   The password of the embedded database is displayed with eight asterisks (*), irrespective of the specified values.

4. Click the Execute button.
   The Progress Status page appears, and the setup executes. The setup might take a few minutes to complete.

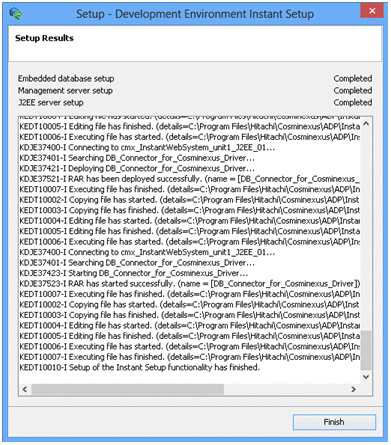

   When the setup is completed, the Setup Results page appears.




5. Click the Finish button.
   The Setup - Development Environment Instant Setup dialog box closes.


At this stage, the creation of the debug environment is complete.
