Install Developer according to the following procedure:

Note

Before installing the Developer, close all Windows applications.

Operation procedure

To install Developer:

1. Set up the installation CD-ROM in the CD-ROM drive.
   A message "The selected software will be installed." appears in the Hitachi Integrated Installer dialog box.
   If the Hitachi Integrated Installer dialog box does not appear, use Explorer and double-click HCD_INST.EXE in the CD-ROM directory.

2. Select uCosminexus Developer and then click the Install button.
   A warning message "Installation will start now. Do you wish to continue?" appears in the Confirm Starting of Installer - Hitachi Integrated Installer dialog box.

3. Click the OK button.
   The Welcome to the uCosminexus Developer Setup Program page appears.

4. Click the Next button.
   The Choose Destination Location page appears.

5. As and when required, select the installation destination directory, and then click the Next button.


   Hint

   To execute the procedure from 2.3 onward, the installation destination directory to be selected here must meet the following condition:

   • Length of the path Installation-directory-of-Developer\ADP\DB must be within 80 bytes.

   When you install Developer, the ADP and DB directories are created automatically. Therefore, specify the installation destination directory so that the path will be within 73 bytes.

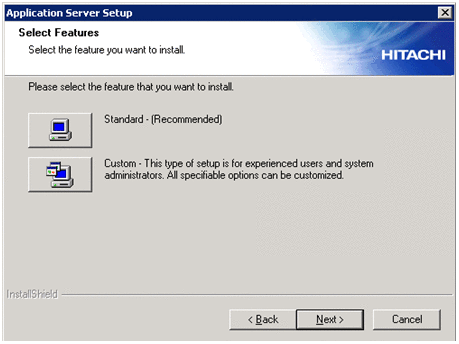

   The Select Features page appears.




6. Click the button on the left of Standard - (Recommended).

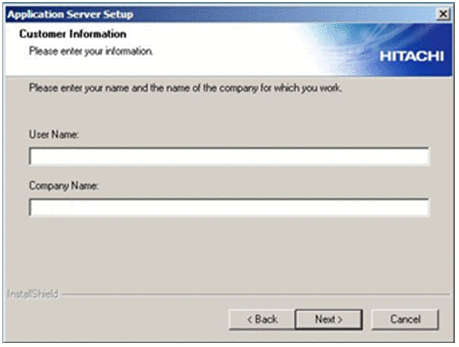

   The Customer Information page appears.




7. Enter the correct name in User Name and Company Name, and then click the Next button.
   The Select Program Folder page appears.

8. As and when required, change the program folder name, and then click the Next button.
   The Start the installation page appears.

9. Check the set up details, and if no problem exists, click the Next button.
   The installation starts. Once the installation is completed, the Completing the Setup dialog box appears. The installation might take a few minutes to complete.

10. Click the Finish button.
    A window to confirm whether to reboot the OS appears.

11. Click the Yes button.
    The OS will reboot, and the installation of Developer will complete.


At this stage, Developer is installed.
