4.7.1 Registering an installed software name

The installed software name is the name of the software as it is installed on the device. When an installed software asset is added in the Software tab in the Device Details dialog box, the name registered here is selected as the installed software name.

In each job menu under the job category Software License, to execute software license management, you must not only register an installed software name but also assign a software name to the registered installed software name.

To register a new installed software name and establish its correspondence with a software name:

  1. Click the Add button.
    The Add Installed Software dialog box is displayed.
    To cancel, click the Close button.
  2. Specify an item.
    Items identified by a star ([Figure]) are mandatory.
  3. Click the Browse button for Software name.
    The Select Software dialog box is displayed.
  4. If necessary, specify the search condition and click the Search button.
    The software names satisfying the condition are retrieved.
  5. Select the name of the software that you want to establish correspondence with the installed software name to be registered, and then click the OK button.
    The Select Software dialog box closes, and Software name is specified.
  6. In the Add Installed Software dialog box, click the OK button.
    The Add Installed Software dialog box closes, and the installed software name is registered based on the specified information.

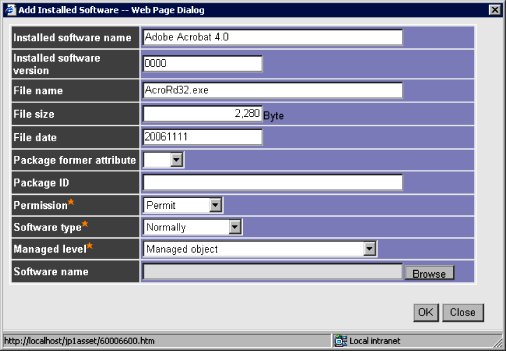

The following figure shows the Add Installed Software dialog box in which the software name to be registered is specified.

Figure 4-23 Add Installed Software dialog box

[Figure]
