By using the Program Execution History job menu, you can determine the programs used by users from the log of program start and end times.
To view the program execution history by using the Program Execution History job menu, you must execute the Take operation history task in Windows Task Scheduler and get the operation logs. For details about getting the program execution history, see 5.9.1 Types of tasks in the Planning and Setup Guide.
By default, only the administrator can browse the program execution history.

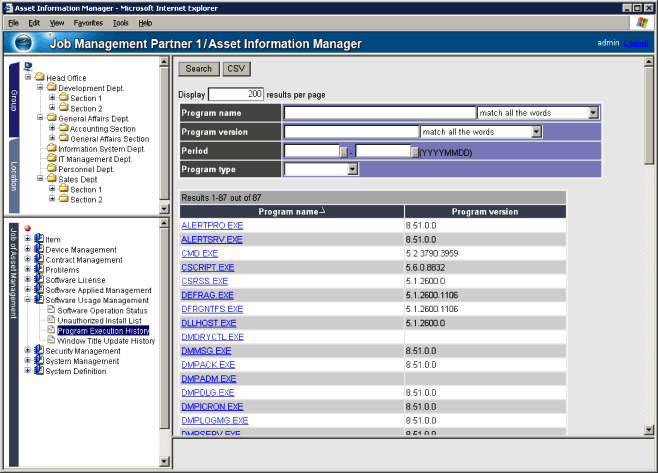

You can check the program execution history by clicking on the Program Execution History job menu to display the Program Execution History window. The following figure shows the Program Execution History window.
Figure 2-78 Program Execution History window
Specify the required conditions, click the Search button, and a list of programs that match the conditions is displayed.
You can set up the system so that it collects program execution history only for information that you want to manage. To manage the history regardless of the program version, hide the program versions by using the Customize Job Windows job menu.
For details about each setup method, see 5.9.8 Specifying the operation history acquisition range and filtering or 9.3.6(1) Setting the view/hide settings for search results in the Planning and Setup Guide.
To search for programs within a specified time period, specify, under the Period search condition, the start date and the end date of the desired log data.
If the start date is omitted and only the end date is specified, the log is searched from the oldest date for which program execution history was collected until the specified end date.
If the end date is omitted and only the start date is specified, the log is searched from the specified start date until the most recent log date.

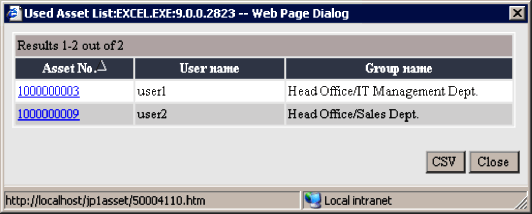

You can click the Program name link in the list of search results to display a list of the devices that use the program. From here, you can display when the program started and stopped on each device.
The following figure shows an example of a window that displays the devices that have used a program.
Figure 2-79 Window that displays devices that have used a program (program execution history)

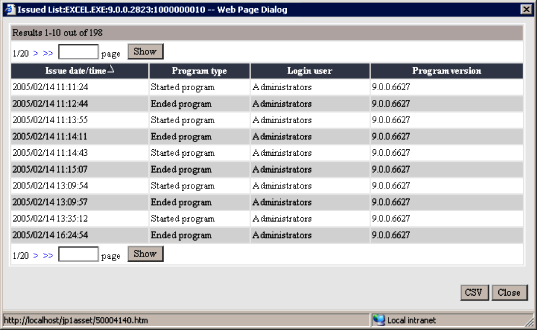

You can display a log of the program start and end times for a device. Click an Asset No. link in the window displayed in (2) to display the associated device's start and end times.
The following figure shows the window that displays the start and end times for a device.
Figure 2-80 Window that displays the start and end times for a device (program execution history)
