An audit log is output as CALFHM, which indicates the audit log format, followed by an audit log revision number and the applicable output item.

The following figure shows the audit log format.

Figure G-1 Audit log output format

Audit logs are output to the folder that was specified for Audit log entry output folder in the Server Setup dialog box. The default folder is the following:

Asset-Information-Manager-installation-folder\auditlog

For details about how to specify the audit log output destination in the Server Setup dialog box, see the explanation of the audit log entry output folder in 5.3.4 Setting Basic Information.

There are two types of items that are output in audit logs: common output items and fixed output items. Each type is explained below.

• Common output items
  These are common items that are output for all JP1 products for which audit logs are output.

• Fixed output items
  These items are output individually for each JP1 product for which audit logs are output.


(a) Common output items

The following table shows the values that are output for the common output items and their description.

Table G-2 Common output items in audit logs

No.	Output item		Value	Description
	Item name	Output attribute name
1	Common specification identifier	--	CALFHM	Identifier that indicates the audit log format
2	Common specification revision number	--	X.X	Revision number for managing audit logs
3	Sequence number	seqnum	Sequence number	Audit log sequence number
4	Message ID	msgid	KDAMxxxx-x	Message ID for each product
5	Date/time	date	YYYY-MM-DDThh:mm:ss.sssTZD#	Audit log acquisition date/time and time zone
6	Generated program name	progid	jp1netmaim	Name of the program in which the event occurred
7	Generated component name	compid	stu Server setup component w3c Asset Information Manager's job component that is executed on ISS by a browser or other product-related program	Name of the component in which the event occurred
8	Generate process ID	pid	Process ID	ID of the process in which the event occurred
9	Generated location	ocp:host	Host name	Name of the host in which the event occurred If the host name cannot be acquired, no value is displayed.
10	Event type	ctgry	ConfigurationAccess Authentication ContentAccess	Identifiers for classifying the events that are output to audit logs
11	Event result	result	Success Success Failure Failure Occurrence Occurrence of an event that does not have success or failure classification	Result of the event that occurred
12	Subject identification information	subj:euid	Windows account	Information about the user who caused the event
		subj:uid	Asset Information Manager user ID

Legend:

--: Attribute name is not output.

#

YYYY indicates the year; MM, the month; DD, the day; hh, the hour; mm, the minute; ss, the second; and sss, the millisecond.

T separates the date from the time.

TZD is the time zone identifier. One of the following is output:

+hh:mm: Indicates that the local time is ahead of GMT by hh:mm.

-hh:mm: Indicates that the local time is behind GMT by hh:mm.

Z: Indicates that the local time is the same as GMT.

(b) Fixed output items

The following table shows the values that are output for the fixed output items and their description.

Table G-3 Fixed output items in audit logs

No.	Output item		Value	Description
	Item name	Output attribute name
1	Object information	obj	aimJOB Setup (batch system) aimAuth Authentication (login) aimClass Asset Information Manager's job processing	Information about the file or database that caused the event
2	Action information	op#	Login Login Logout Logout Add Addition Update Update Delete Deletion	Information about the user operation that caused the event
3	Table name	obj:table#	Device Software Group User Location Software name License name Installed software name Role Managed items Customize Job Windows Customize Job Menu Assign Inventory	Managed class name
4	Free description	msg#	Arbitrary message	Message indicating the event contents

#

For details about the messages that are output and the related items that are set in correspondence to these messages, see G.4 Audit log messages and related output items.

The following example shows the audit log output when a user logs in to Asset Information Manager and executes server setup.

The following operations are executed in this case:

1. Executing server setup.
2. Logging in to Asset Information Manager.
3. Registering device information.
4. Logging out of Asset Information Manager.

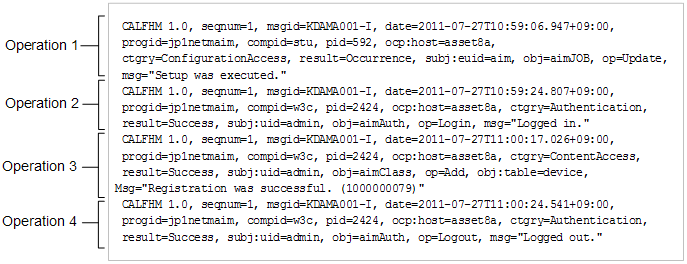

The following figure shows an example of the audit log output.

Figure G-2 Example of audit log output
