This subsection describes how to back up data in the asset management database in CSV format and restore the data in CSV format.
Notes
- Before you start the procedure, stop all Asset Information Manager services, commands, and tasks.
- Stop the Asset Information Manager services in the following order:
- World Wide Web Publishing Service or World Wide Web Publishing
- Asset Information Synchronous Service, Asset Information Manager commands, and tasks
- JP1/Client Security Control - Manager (when JP1/CSC is linked)
When you run Asset Information Manager after having backed up or restored the asset management database, start the services in the reverse order of the order in which they were stopped.
- In an environment that uses Microsoft SQL Server, if a connection pool is set in an ODBC data source, the connected state continues after an Asset Information Manager job is stopped until the timeout time set in the connection pool expires. Therefore, wait for the connected state to be released before backing up or restoring the asset management database.
There are two ways to obtain a backup copy of the asset management database in CSV format:
- By using the Database Manager dialog box
- By executing jamdbexport.bat from the command line
- Organization of this subsection
- (1) Backing up the asset management database from the Database Manager dialog box
- (2) Backing up the asset management database using the command
- (3) Restoring the asset management database from the Database Manager dialog box
(1) Backing up the asset management database from the Database Manager dialog box
To back up the asset management database from the Database Manager dialog box:
- Click the Start button and point to Programs, then Asset Information Manager, and then choose Setup.
The Setup dialog box appears.
- Click the Database Manager icon.
The Database Manager dialog box appears.
- Select Back up the database to CSV files and then click the Next button.
The following dialog box for obtaining a database backup is displayed. Logs displays a maximum of 10 backup logs.

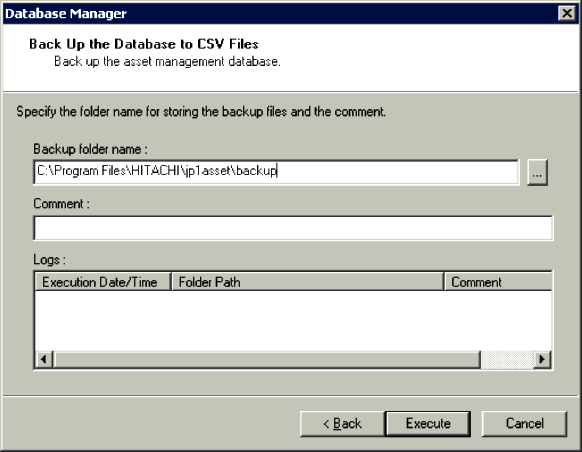

Figure 12-1 Dialog box for obtaining the database backup
![[Figure]](FIGURE/ZUCN0090.GIF)
- Specify the backup folder.
In Backup folder name, specify the backup folder. Allocate sufficient free space to the drive that is specified for the backup folder. Clicking the ... button displays a dialog box in which you can browse folders and specify a desired folder. Specify 1 to 223 bytes of characters. Note that ", |, *, <, >, ?, &, ^, and / are not permitted. By default, Asset-Information-Manager-installation-folder\backup is specified.
By clicking a backup log displayed in Logs, you can specify the folder path of the selected backup log.
- Enter a command, if necessary.
If there is additional information for the backup folder, enter it in Comment, expressed as a maximum of 64 bytes of characters.
- Click the Execute button.
The asset management database is backed up. When the data is backed up, the contents of the asset management database are stored in the backup folder.
- Note
- Do not change the name of the acquired CSV file or its contents. If such a change is made, the asset management database can no longer be restored.
(2) Backing up the asset management database using the command
This subsection describes the function, format, and options for jamdbexport.bat, and provides notes on command execution. This command executes the same backup as the method that uses the Database Manager dialog box, but it does so from the command line on the asset management server.
jamdbexport.bat is stored in the following folder:
Asset-Information-Manager-installation-folder\exe
(a) Function
jamdbexport.bat obtains a backup of the asset management database and outputs the data to CSV files. When jamdbexport.bat is executed, the contents of the asset management database are stored in the backup folder.
(b) Format
jamdbexport.bat backup-folder-path [-rp]
(c) Options
- backup-folder-path
- Specifies the full path of the backup folder. Allocate sufficient free space to the drive that is specified for the backup folder. When you specify a path, note the following:
- Do not include any spaces in a folder name.
- Do not enclose a folder name in double-quotation marks (").
- Do not specify an existing folder name.
- If the path is omitted, Asset-Information-Manager-installation-folder\backup is set.
- -rp
- If this option is specified, the command starts the backup processing without waiting for a key response.
- If this option is omitted, the command waits for a key response. To cancel execution, press the Ctrl + C keys.
(d) Notes on command execution
- If you specify the -rp option, the command prompt closes after the processing terminates, making it impossible to determine whether an error has occurred.
- Do not change the name or contents of the CSV files acquired by jamdbexport.bat. If such a change is made, the asset management database can no longer be restored.
(3) Restoring the asset management database from the Database Manager dialog box
Before you start the restore processing, make sure that the asset management database has been created. If no asset management database has been created, use the Database Manager dialog box to create a new asset management database, and then execute the restore processing.
To restore a backup of the asset management database from the Database Manager dialog box:
- Click the Start button and point to Programs, then Asset Information Manager, and then choose Setup.
The Setup dialog box appears.
- Click the Database Manager icon.
The Database Manager dialog box appears.
- Select Restore the database from CSV files and then click the Next button.
The following dialog box for restoring the database is displayed. Logs displays a maximum of 10 backup logs.

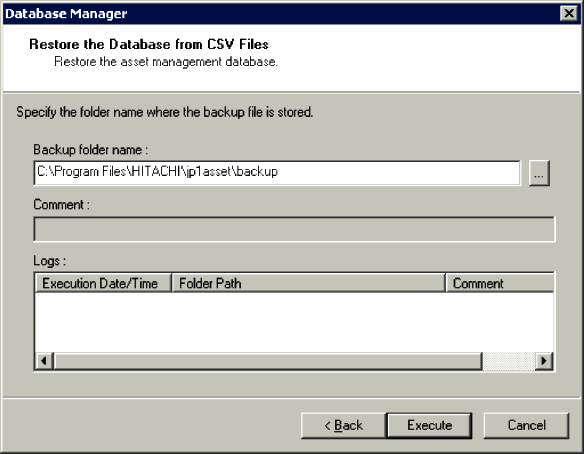

Figure 12-2 Dialog box for restoring the database
![[Figure]](FIGURE/ZUCN0100.GIF)
- Specify the backup folder that is to be restored.
In Backup folder name, specify the backup folder. Clicking the ... button displays a dialog box in which you can browse folders and specify a desired folder. Specify 1 to 223 bytes of characters. Note that ", |, *, <, >, ?, &, ^, and / are not permitted. By default, Asset-Information-Manager-installation-folder\backup is specified.
By clicking a backup log displayed in Logs, you can specify the folder path of the selected backup log.
- Note
- Do not change the names or contents of the files created during the backup processing.
- Click the Execute button.
The asset management database is restored.
