To create a net service, specify information about the database to be connected.

The following shows the dialog box for creating a net service.

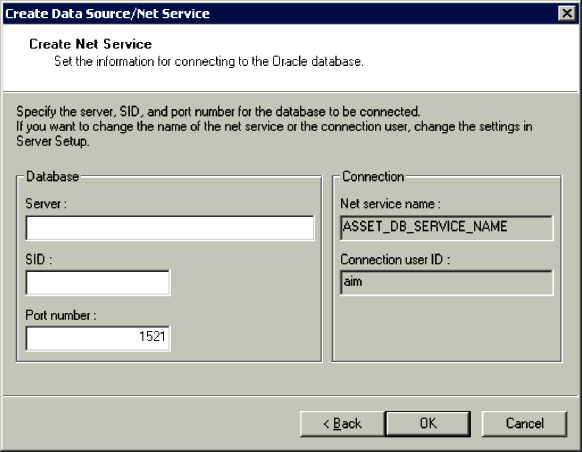

Figure 5-14 Dialog box for creating a net service (for Oracle)

To return to the list of connection targets, click the Back button.

To create a net service:

1. In the dialog box for creating a net service, specify Server, SID, and Port number.
   The following describes each item in the dialog box.

   • Server
     Specifies the server name or IP address of the database to be connected. By default, this item is blank. The permitted value is 1 to 63 bytes of alphanumeric characters and %, ~, -, _, ., /, and \.

   • SID
     Specifies the name of the database to be connected. For Oracle8i, specify SID; for Oracle9i, specify the service name. The permitted value is 1 to 8 bytes of alphanumeric characters.

   • Port number
     Specifies the port number of the server of the database to be connected. Specify an integer from 1 to 65535. By default, 1521 is specified.

   • Net service name
     Displays the value specified in the Server Setup dialog box. This item cannot be changed. The displayed value depends on the product selected in Products for connection. The following table shows the items in the Server Setup dialog box that correspond to the selected product.


     Table 5-11 Items in the Server Setup dialog box that correspond to the selected product (net service name)

     Selected product	Item in the Server Setup dialog box
     Asset Information Manager	Service name
     JP1/Software Distribution	Connection service for JP1/SD database

   • Connection user ID
     Displays the value specified in the Server Setup dialog box. This item cannot be changed. The displayed value depends on the product selected in Products for connection. The following table shows the items in the Server Setup dialog box that correspond to the selected product.


     Table 5-12 Items in the Server Setup dialog box that correspond to the selected product (connection user ID)

     Selected product	Item in the Server Setup dialog box
     Asset Information Manager	Login ID
     JP1/Software Distribution	JP1/SD database login ID

2. Click the OK button.
   The net service is created. When the net service creation is completed, a message to that effect is displayed.

3. Click the OK button.
   The dialog box for creating a net service closes and the list of connection targets is displayed again.
